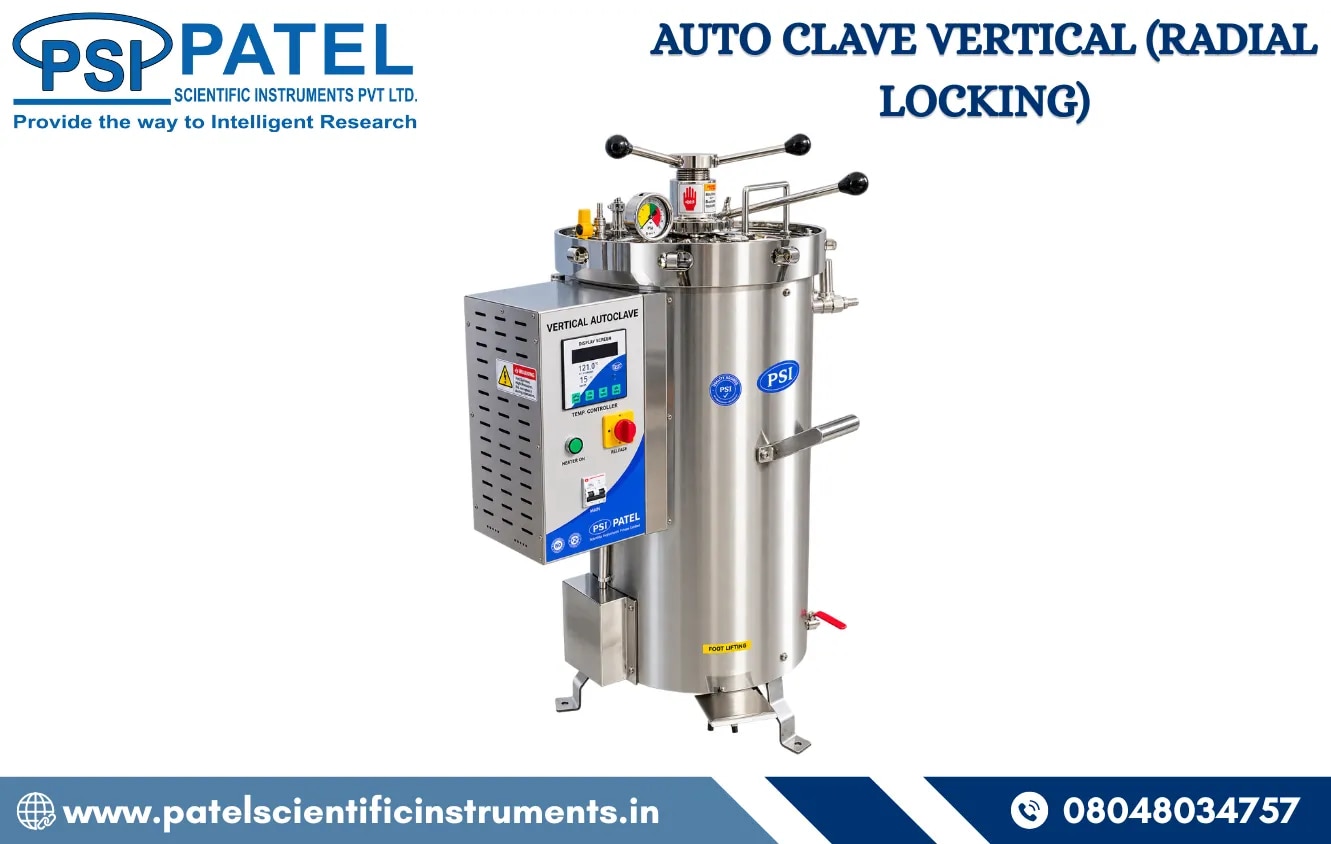

AUTO CLAVE VERTICAL (RADIAL LOCKING)

Vertical Autoclave Radial Locking Dealer in Ahmedabad

The Vertical Autoclave (Radial Locking) from Patel Scientific Instruments Pvt. Ltd. is a reliable sterilization system that uses saturated steam at 5–20 PSI to eliminate bacteria, viruses, and other contaminants. Trusted by labs, hospitals, and research centers, this Vertical Autoclave Manufacturer in Ahmedabad ensures safe, efficient, and thorough sterilization.

Key Features:

Double-walled construction: Inner chamber (16 SWG SS 304) and outer shell (SS 304, mirror polish) with air insulation.

Top lid with radial locking system, pressure gauge, steam release valve, spring-loaded safety valve, and drain for easy cleaning.

Fully argon-arc-welded joints to prevent steam and pressure leaks.

Heavy-duty industrial flange heaters for efficient heating.

Microprocessor PID controller with programmable time (1–99 min) and temperature; PT-100 sensor ensures precise sterilization.

Low-water-level alarm with heater cut-off for safety.

Stainless steel perforated basket for sterilization load.

Automatic full sterilization cycle: air purging, sterilizing hold time, pressure release, and alarm.

Operates on 230V AC, single-phase, 50 Hz supply.

Applications: Microbiology labs, hospitals, pharma industries, QC/QA, R&D, and all setups requiring reliable sterilization.

Technical Specifications

Temperature Range: 121°C – 124°C

Pressure Range: 15–20 PSI (Factory set at 15 PSI)

Temperature Resolution: 0.1°C

Timer Range: 1 – 99 minutes

Power Supply: 230V AC, Single Phase, 50 Hz

Sensor: PT-100 Temperature Sensor

HSN Code: 84192010

Available Models & Capacity

PSI-VAC40L

oSize: 300 Ø x 500 mm (12 Ø x 20 inch)

oCapacity: 40 Liters

oPower Rating: 2000 Watts

oNumber of Baskets: 1

PSI-VAC52L

oSize: 350 Ø x 550 mm (14 Ø x 22 inch)

oCapacity: 52 Liters

oPower Rating: 3000 Watts

oNumber of Baskets: 1

PSI-VAC80L

oSize: 400 Ø x 600 mm (16 Ø x 24 inch)

oCapacity: 80 Liters

oPower Rating: 4000 Watts

oNumber of Baskets: 1

PSI-VAC98L

oSize: 450 Ø x 600 mm (18 Ø x 24 inch)

oCapacity: 98 Liters

oPower Rating: 4000 Watts

oNumber of Baskets: 1

PSI-VAC120L

oSize: 450 Ø x 750 mm (18 Ø x 30 inch)

oCapacity: 120 Liters

oPower Rating: 5000 Watts

Number of Baskets: 2

PSI-VAC152L

oSize: 550 Ø x 750 mm (22 Ø x 30 inch)

oCapacity: 152 Liters

oPower Rating: 6000 Watts

Number of Baskets: 2

PSI-VAC200L

oSize: 550 Ø x 900 mm (22 Ø x 36 inch)

oCapacity: 200 Liters

oPower Rating: 7000 Watts

Number of Baskets: 2

Why Choose Patel Scientific Instruments Pvt. Ltd.?

Patel Scientific Instruments is a trusted Vertical Autoclave Radial Locking Exporter from India, offering reliable, safe, and long-lasting sterilization solutions. With precision engineering, high-quality materials, and strong after-sales support, they are preferred by laboratories, hospitals, and research centers across India.

Contact us today to learn more about our premium laboratory autoclaves and available offers.
