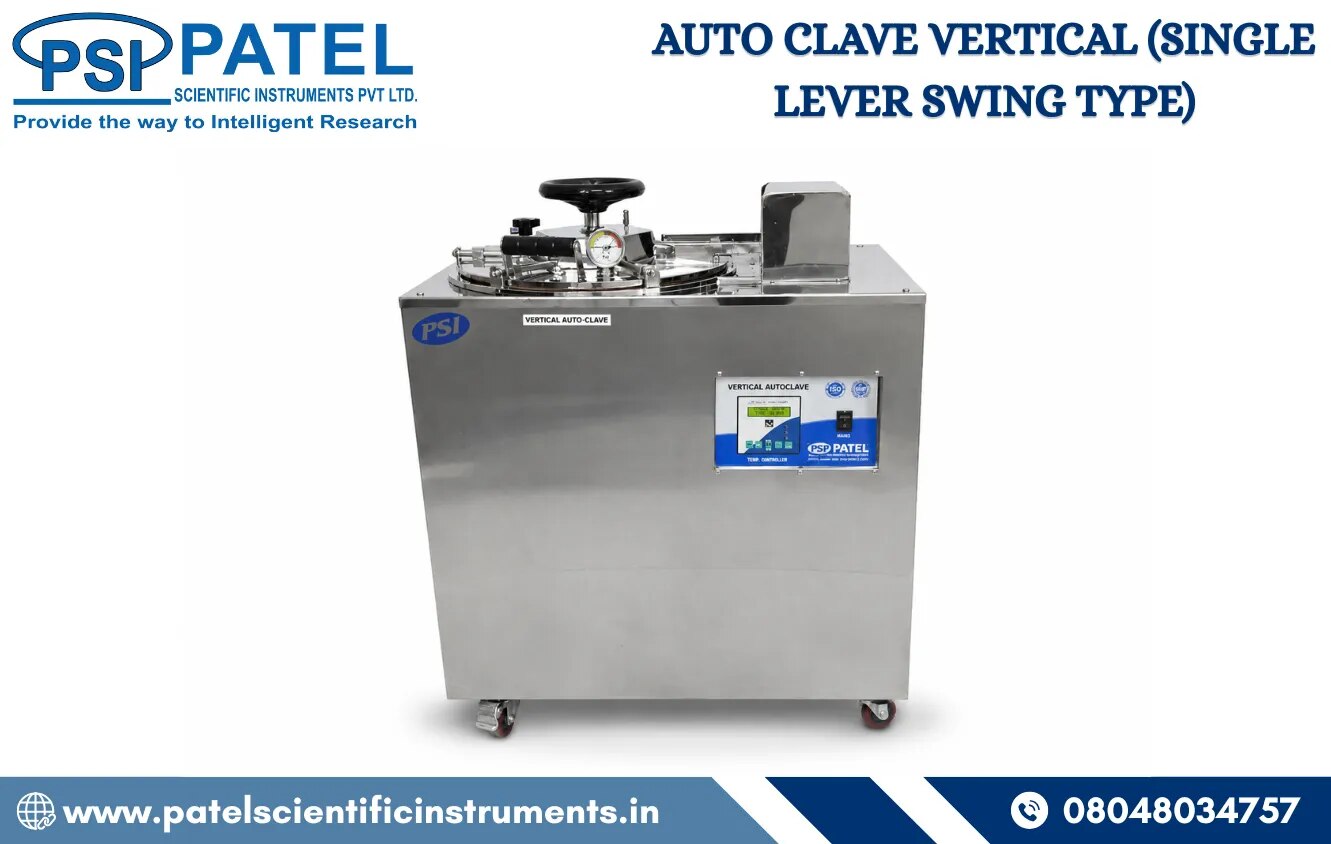

AUTO CLAVE VERTICAL (SINGLE LEVER SWING TYPE)

Vertical Autoclave – Fully Automatic (Radial Locking, Double Wall)

The Vertical Autoclave Manufacturer in Ahmedabad is a high-performance sterilization system that operates at saturated steam pressures of 5 to 20 PSI, ideal for microbiology, medicine, pharma, QC/QA, R&D, and waste treatment. These double-walled units feature an inner chamber (boiler) made of 16 SWG, 304-grade stainless steel, with silicone rubber gaskets and fully argon-welded joints to prevent steam or pressure leaks.

Key Features

Double-walled construction: Inner & outer chamber in stainless steel, air-insulated for efficiency.

Spring-loaded lid: Die-pressed thick stainless steel with top radial locking system, pressure gauge, steam release/exhaust valve, and spring-loaded safety valves.

Safety & convenience: Low-water-level alarm with heater cut-off, drain valve, and castor wheels for easy movement.

Control & automation: Microprocessor PID controller with programmable timer (1–99 min) and Class A RTD temperature sensor.

Heavy-duty components: Industrial flange heaters and a perforated stainless steel basket.

Automatic sterilization cycle: Includes air purging, sterilizing hold time, and pressure release with alarm.

Power supply: 230V AC, single-phase, 50 Hz.

Technical Specifications

Temperature Range: 121°C – 124°C

Temperature Resolution: 0.1°C

Pressure Range: 15–20 PSI (factory set at 15 PSI)

HSN Code: 84192010

Models & Specifications

PSI-VAC52L

oSize: 350 Ø x 550 mm (14″ x 22″)

oCapacity: 52 Liters

oPower Rating: 3000 Watts

oNumber of Baskets: 1

PSI-VAC80L

oSize: 400 Ø x 600 mm (16″ x 24″)

oCapacity: 80 Liters

oPower Rating: 4000 Watts

oNumber of Baskets: 1

PSI-VAC98L

oSize: 450 Ø x 600 mm (18″ x 24″)

oCapacity: 98 Liters

oPower Rating: 4000 Watts

oNumber of Baskets: 1

PSI-VAC120L

oSize: 450 Ø x 750 mm (18″ x 30″)

oCapacity: 120 Liters

oPower Rating: 5000 Watts

Number of Baskets: 2

PSI-VAC152L

oSize: 550 Ø x 750 mm (22″ x 30″)

oCapacity: 152 Liters

oPower Rating: 6000 Watts

Number of Baskets: 2

PSI-VAC200L

oSize: 550 Ø x 900 mm (22″ x 36″)

oCapacity: 200 Liters

oPower Rating: 7000 Watts

Number of Baskets: 2

Why Professionals Trust Patel Scientific Instruments Pvt. Ltd.

Choosing the right supplier makes all the difference in long-term performance. Patel Scientific Instruments Pvt. Ltd. is a leading Vertical Autoclave Exporter from India, known for delivering high-quality, reliable, and innovative laboratory autoclaves. Their products are made from premium materials, undergo rigorous testing, and are backed by dependable service, giving clients complete peace of mind.

Ready to Upgrade Your Lab?

If you need a trusted Radial Locking Autoclave Supplier or Double Wall Autoclave Exporter, this model is designed to meet and exceed your sterilization needs. More than just equipment, it is a long-term solution for safe, efficient, and automated laboratory sterilization.

Contact Patel Scientific Instruments Pvt. Ltd. today to bring precision, safety, and automation to your laboratory workflow.
