AUTO CLAVE VERTICAL

Auto Clave Vertical Manufacturer in Ahmedabad.

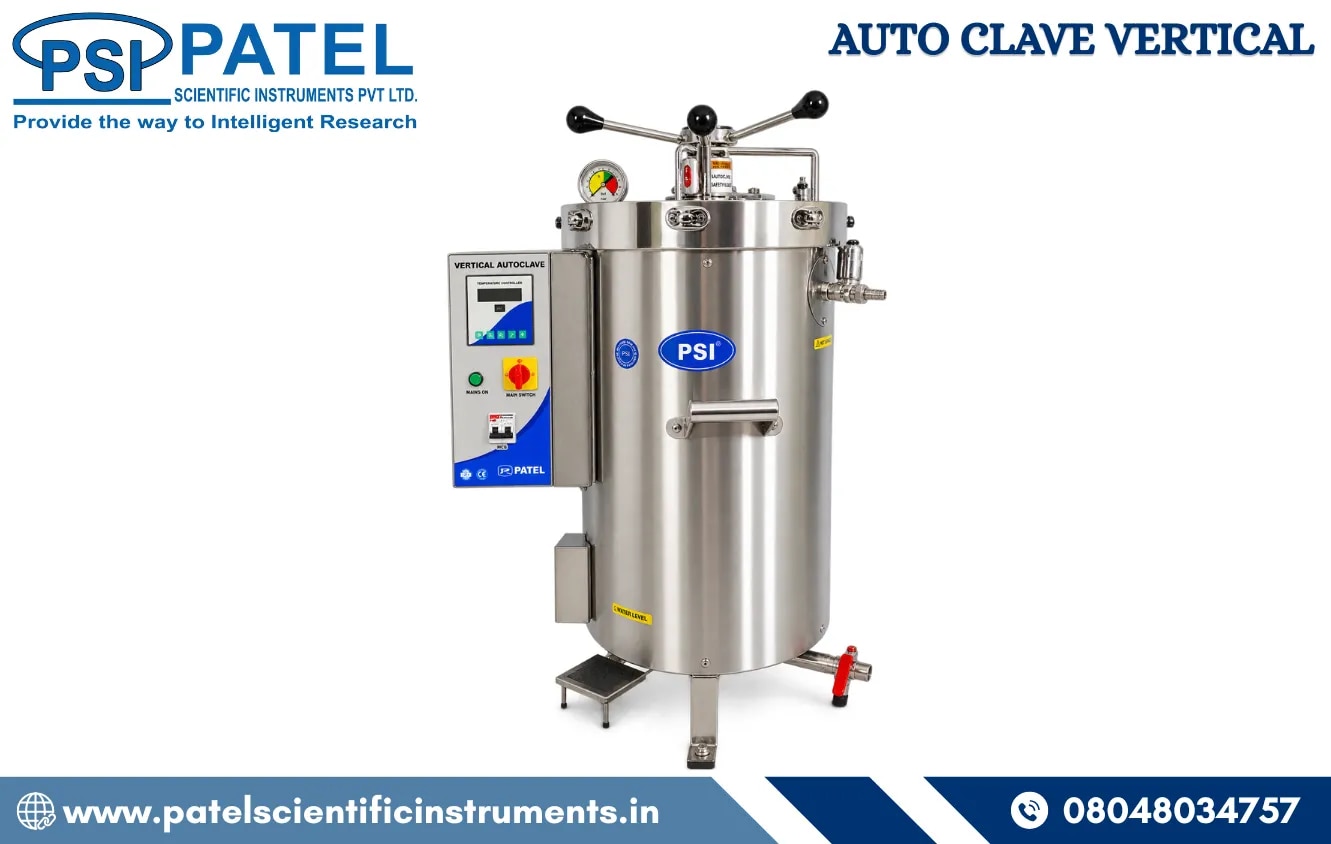

PSI-001 – Vertical Autoclave (Fully Automatic, Radial Locking, Double Wall)

The Vertical Autoclave Manufacturer in Ahmedabad is a high-performance sterilization system designed for microbiology labs, hospitals, pharma industries, QC/QA, R&D, and waste treatment. Operating under saturated steam pressure from 5 to 20 PSI, it ensures safe, reliable, and thorough sterilization.

Key Features:

Double-walled construction: Inner chamber (16 SWG, SS 304) and outer shell (SS 304, mirror polish) with air insulation.

Top lid with radial locking system: Die-pressed thick stainless steel, pressure gauge, steam release/exhaust valve, spring-loaded safety valve, and ¼” BSP port for validation.

Safety & convenience: Low-water-level alarm with heater cut-off, drain valve for easy cleaning, and a foot-lifting lid arrangement.

Control & automation: Microprocessor PID controller with timer (1–99 min) and PT-100 temperature sensor.

Heavy-duty components: Industrial flange heaters and stainless steel perforated basket.

Automatic sterilization cycle: Air purging, sterilizing hold time, pressure release, and alarm.

Power Supply: 230V AC, single-phase, 50 Hz.

Technical Specifications:

Temperature Range: 121°C – 124°C

Temperature Resolution: 0.1°C

Pressure Range: 15–20 PSI (Factory set at 15 PSI)

HSN Code: 84192010

Models & Specifications

PSI-VAC40L

oSize: 300 Ø x 500 mm (12″ x 20″)

oCapacity: 40 Liters

oPower Rating: 2000 W

oNumber of Baskets: 1

PSI-VAC52L

oSize: 350 Ø x 550 mm (14″ x 22″)

oCapacity: 52 Liters

oPower Rating: 3000 W

oNumber of Baskets: 1

PSI-VAC80L

oSize: 400 Ø x 600 mm (16″ x 24″)

oCapacity: 80 Liters

oPower Rating: 4000 W

oNumber of Baskets: 1

PSI-VAC98L

oSize: 450 Ø x 600 mm (18″ x 24″)

oCapacity: 98 Liters

oPower Rating: 4000 W

oNumber of Baskets: 1

PSI-VAC120L

oSize: 450 Ø x 750 mm (18″ x 30″)

oCapacity: 120 Liters

oPower Rating: 5000 W

Number of Baskets: 2

PSI-VAC152L

oSize: 550 Ø x 750 mm (22″ x 30″)

oCapacity: 152 Liters

oPower Rating: 6000 W

Number of Baskets: 2

PSI-VAC200L

oSize: 550 Ø x 900 mm (22″ x 36″)

oCapacity: 200 Liters

oPower Rating: 7000 W

Number of Baskets: 2

How Does a Vertical Autoclave Work?

The Vertical Autoclave (Radial Locking, Double Wall) operates using saturated steam pressure to sterilize instruments, liquids, and waste efficiently:

1. Load the chamber with instruments, liquids, or waste.

2. Steam is injected to displace air and create high-pressure conditions.

3. Microprocessor-controlled cycles maintain the selected pressure and temperature.

4. The sterilization hold time completes automatically, followed by a safe pressure release.

This ensures complete sterilization with minimal human intervention and maximum safety.

Applications & Usage

Our Vertical Autoclaves are perfect for microbiology labs, hospitals, pharma R&D, QA/QC labs, and industrial sterilization.

Get reliable sterilization from Patel Scientific Instruments Pvt. Ltd., a trusted Radial Locking Autoclave Supplier in South Africa.
