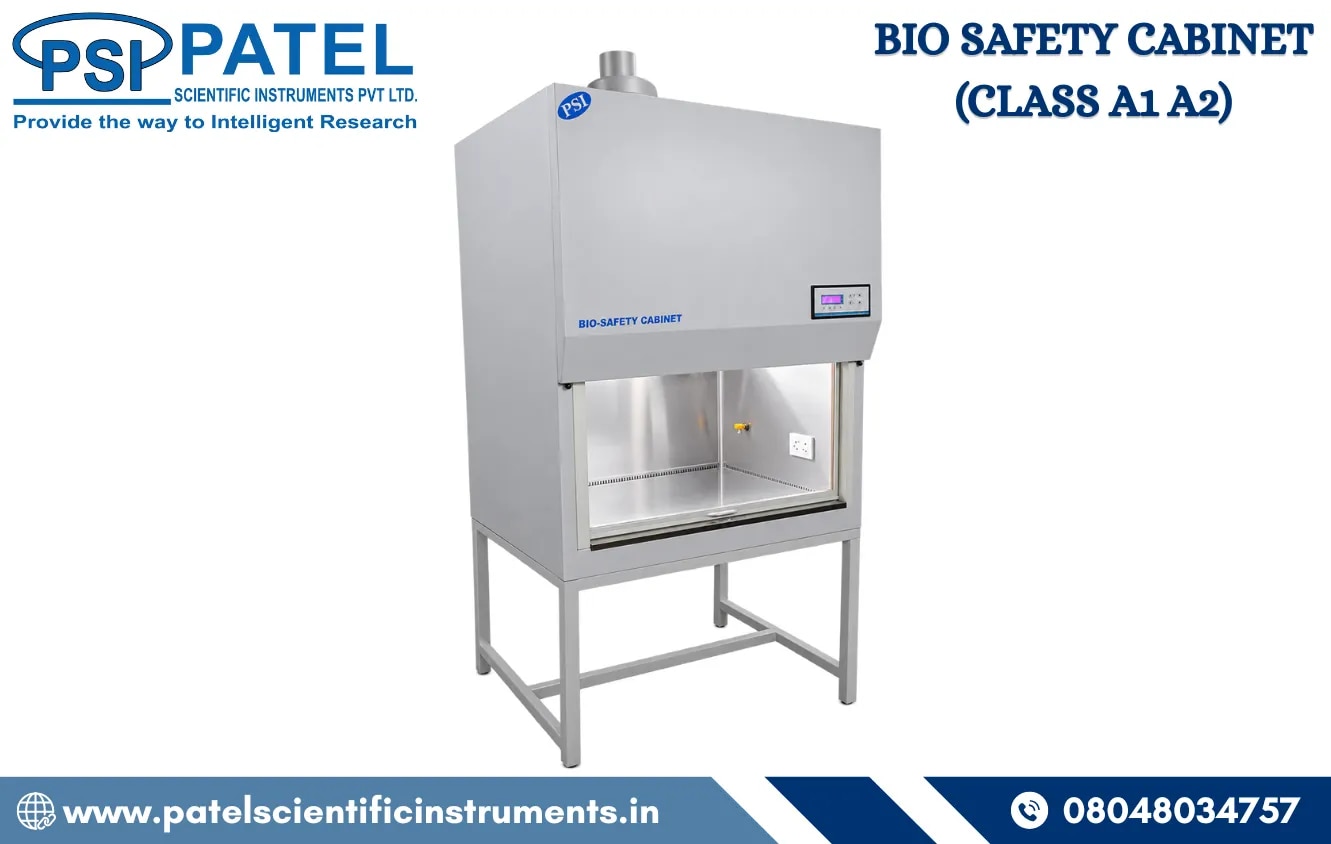

BIO SAFETY CABINET

Bio Safety Cabinet Supplier in Ahmedabad

In modern laboratories, safety is not optional—it’s essential. A Biosafety Cabinet (Class A1 or A2) plays a critical role in protecting laboratory personnel, sensitive samples, and the surrounding environment from harmful microorganisms. At Patel Scientific Instruments Pvt. Ltd., precision engineering meets safety compliance to deliver high-performance cabinets designed for real-world laboratory challenges.

Recognized as one of the Top Biosafety Cabinet Manufacturers in India, the company offers advanced solutions tailored for research labs, hospitals, and the pharmaceutical industry.

Class II Type A2 Bio Safety Cabinet – Technical Specifications

Product: Class II Type A2 Bio Safety Cabinet

Air Balancing / Protection: 70% air recirculation, 30% exhaust for personnel & environmental protection

MOC / Body Construction: Galvanized Iron with PU coating / Stainless Steel (Matt Finish)

Exhaust Filter: HEPA Filter (EU 13 rating) with a suitable size

Digital Display: Microprocessor LCD for Blower, UV Light, Hour Meter & FLT Timers

Door Type: Weight-lifting sliding door for easy handling

HEPA Filter Efficiency: 99.99% filtration down to 0.3 microns

Pre Filter Rating: EU 4 rating with a suitable size

Pre Filter Type: 10-micron washable

Pre Filter Efficiency: 90% filtration down to 10 microns

Inflow Velocity: Minimum 100% from the front opening

Illumination: Optimum lighting provided

Noise Level: Less than 70 dB (A)

Vibration Level: Minimum

Magnehelic Differential Pressure Gauge: Measures differential pressure across the supply HEPA filter

Motor Blower Assembly: Statistically & dynamically balanced induction motor with centrifugal blower

Mounting System: Unique spring suspension system to control vibration and noise

White Lights: Through a white acrylic cover for maximum light intensity

3 Pin Switch & Socket: 15 Amps – 1 set in each unit

Other Switches: ON/OFF switches for motor blower & CFL lights

Model & Working Inner Dimensions (Size in mm)

• PSI-BSC600 – 600 x 600 x 600 mm

• PSI-BSC900 – 900 x 600 x 600 mm

• PSI-BSC1200 – 1200 x 600 x 600 mm

Each model is crafted to deliver consistent airflow and ergonomic usability.

If you’re searching for a reliable Biosafety Cabinet Class II Type A2 in Ahmedabad, Patel Scientific Instruments Pvt. Ltd. stands out with its commitment to safety, innovation, and quality. As one of the Top Biosafety Cabinet Manufacturers in India, they deliver products that don’t just meet standards—they exceed expectations.

Investing in the right Bio safety Cabinet (Class A1 A2) isn’t just about compliance—it’s about protecting lives, research integrity, and long-term laboratory success.
