DIGITAL BURSTING STRENGTH TESTER

Digital Bursting Strength Tester Manufacturer in Ahmedabad

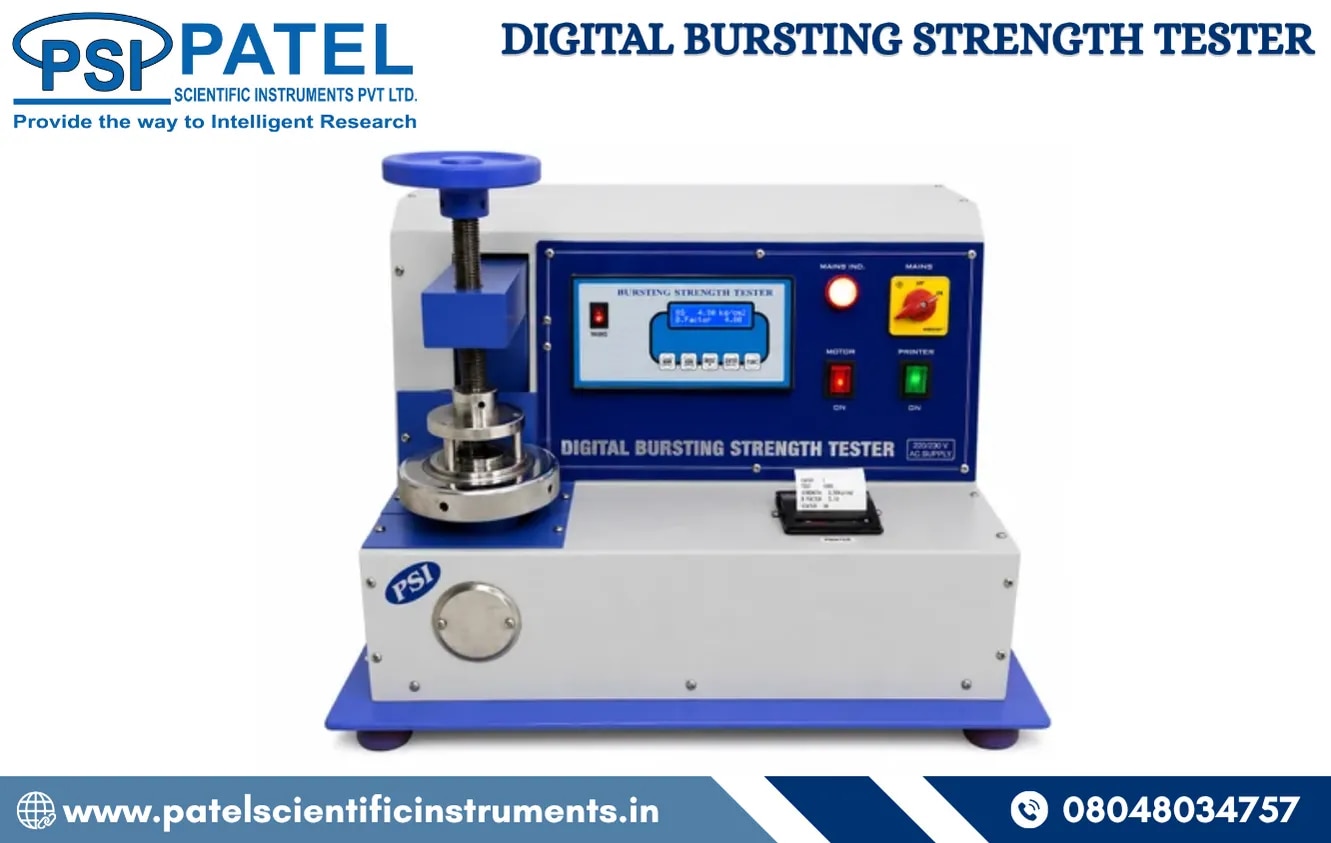

The PSI-006 Digital Bursting Strength Tester is a high-precision instrument designed for testing the bursting strength of paper, board, and packaging materials. It is widely used in quality control laboratories, packaging industries, paper mills, and research centers to ensure material strength and durability standards.

Equipped with a bright LCD display and a peak-hold feature, this microprocessor-based model delivers accurate and reliable results. It offers electronic sensor-based control for precise measurement and improved repeatability, making it essential testing equipment for packaging quality assurance.

Key Features

• Bright LCD display with peak hold function

• Microprocessor-based advanced control system

• Electronic sensor-based measurement for high accuracy

• Adjustable measuring capacity as per requirement

• Available with port facility (on request)

• Fully electronic controlled system for paper & board testing

Technical Specifications

• Model: PSI-006

• Type: Digital Bursting Strength Tester

• HSN Code: 9027

• Load Capacity: Up to 40 kg/cm² (or as required)

• Display Resolution: 0.01 kg/cm²

• Least Count: 0.1 kg/cm²

• Accuracy: ±1% of readout value

• Pump Flow Rate:

95 ± 5 ml/min (Paper)

170 ± 15 ml/min

• Measuring Range:

0–20 kg/cm² (Paper)

0–40 kg/cm² (Board)

Accessories Included

• Diaphragm

• Aluminum foil (for calibration)

• Spanner (key)

• Power cable

• Oil bottle

Upgrade your quality testing standards with the PSI-006 Digital Bursting Strength Tester Exporter from India. Designed for accuracy, durability, and reliable performance, it is the perfect solution for testing paper and packaging materials.
