FOGGER MACHINE

Fogger Machine Dealer in Ahmedabad

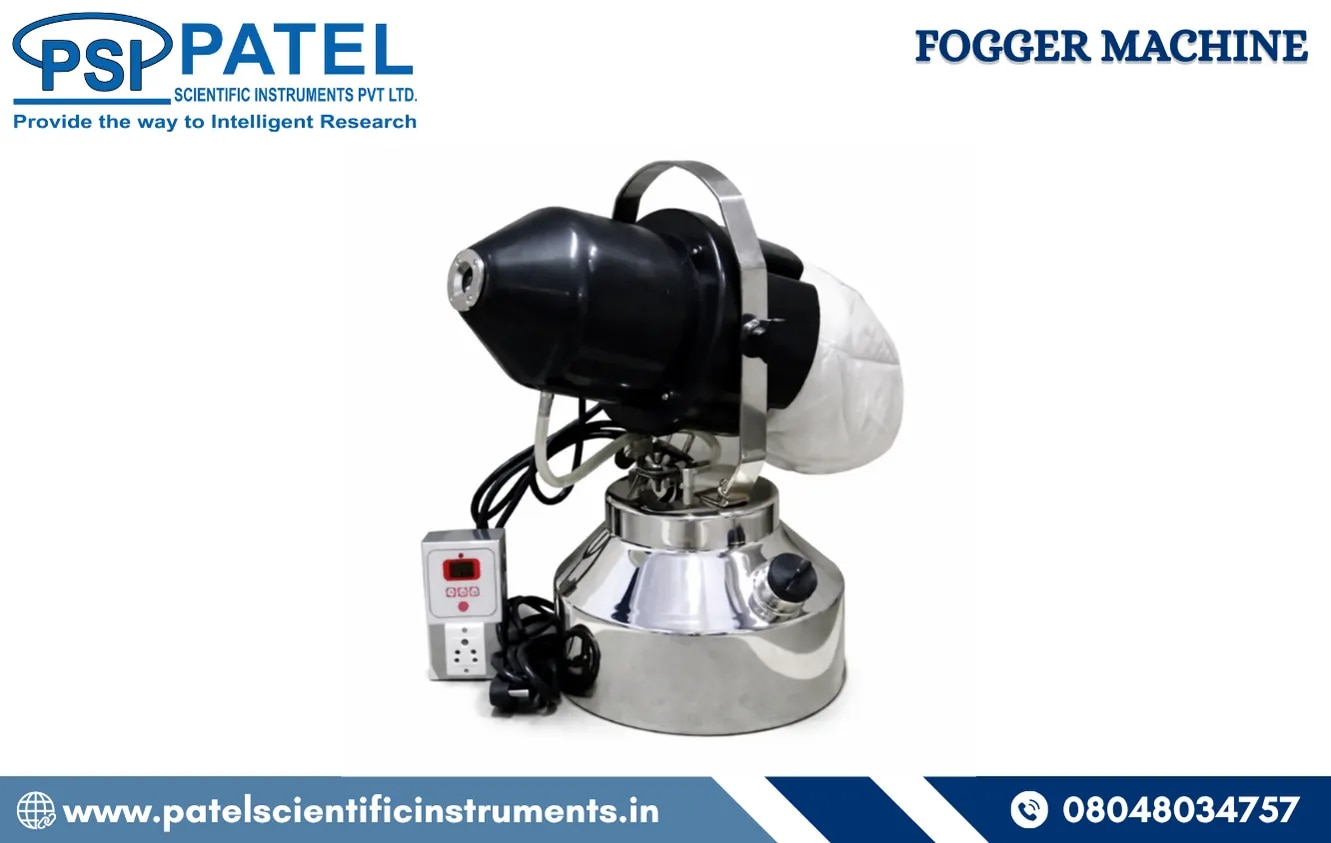

The PSI Fogger Machine Exporter from India is a high-performance fogging system designed for maximum area coverage compared to conventional foggers. It is widely used for sanitization, disinfection, humidification, and pest control applications. Built with a durable 304-grade stainless steel body, it ensures long-lasting performance, corrosion resistance, and easy maintenance.

Features:

• Maximum area coverage compared to conventional foggers

• 304 Grade Stainless Steel body construction

• Chemical level indicator for easy monitoring

• Pre-fitted liquid flow control valve for smooth operation

• 100% portable, convenient & easy to use

• Supplied with a digital timer extension for automatic operation control

Specifications:

• Body & Tank: 304 Grade Stainless Steel

• Tank Capacity: 5 Litre chemical storage

• Blower Motor: >1200 RPM

• Nozzle: 1 counter-rotating vortex nozzle

• Compatible Liquids: Oil-based and water-based chemicals

• Control Valve: One turn brass valve

• Particle Size: 0.5 – 30 µ (adjustable, depends on viscosity & density)

• Range: Visible fog up to 20–40 ft

• Input Power: 230V, 50Hz, Single Phase AC

• Dimensions: 33 × 41 × 23.5 cm (L × H × Dia)

• Net Weight: Approx. 4.60 Kg

Typical Uses:

• Humidification (fogging water)

• Odor control (neutralizers, scents, masking agents)

• Insecticide spraying applications

• Sanitization using germicides and disinfectants

• Mold and mildew control using fungicides and anti-mildew chemicals

The fogger atomizes liquid into fine droplets using high turbulence in the nozzle. At low flow rates (30–60 ml/min), it produces a dry fog with fine particles that diffuse widely. At higher flow rates (120–150 ml/min), it generates larger droplets. The liquid flow is controlled by a valve to adjust droplet size to meet application requirements.
