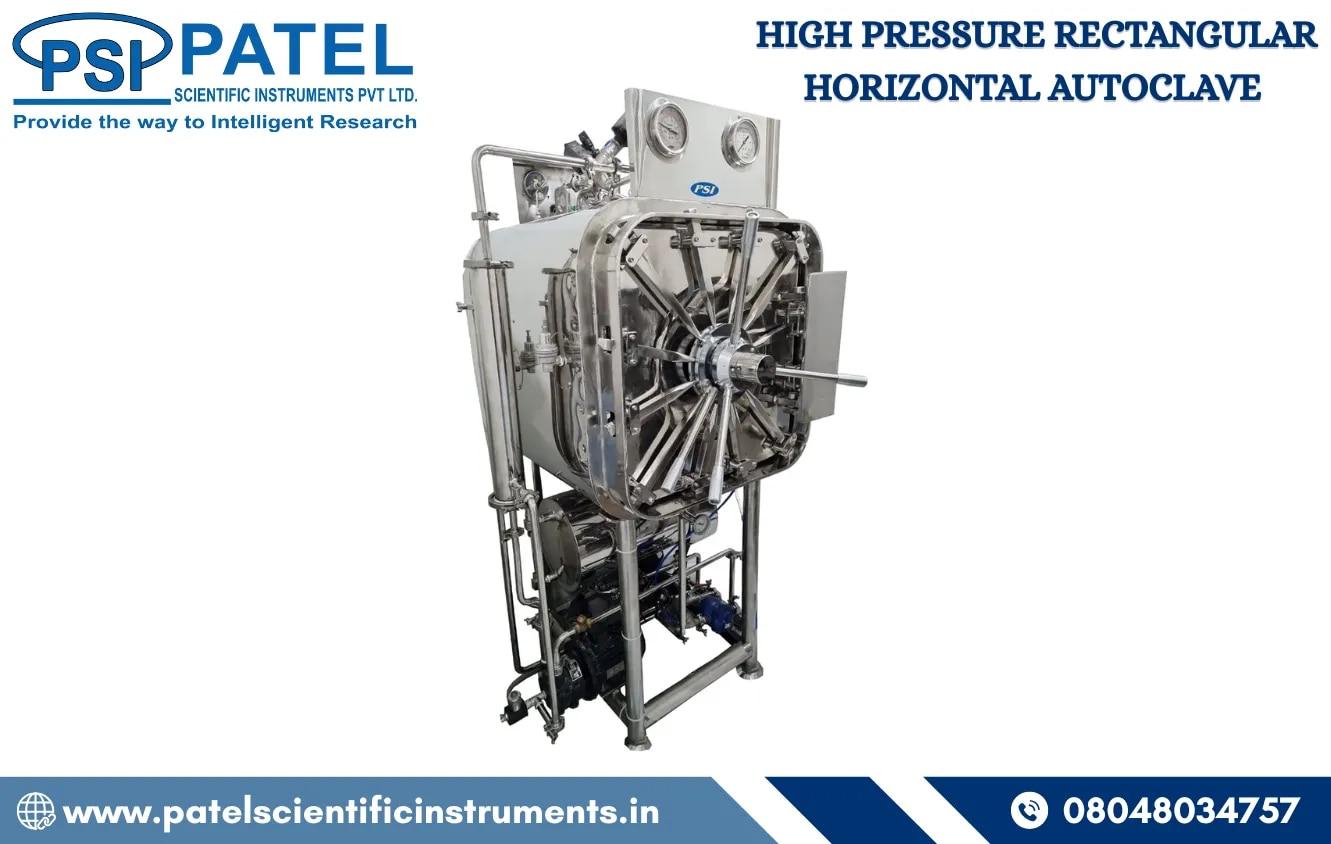

HIGH PRESSURE RECTANGULAR HORIZONTAL AUTOCLAVE

High-Pressure Rectangular Horizontal Autoclave in Ahmedabad

Patel Scientific Instruments Pvt. Ltd. is a leading manufacturer of High-Pressure Rectangular Horizontal Autoclaves in Ahmedabad, delivering reliable, high-performance sterilization solutions for the pharmaceutical, chemical, and industrial sectors. As a trusted High Pressure Rectangular Horizontal, we focus on precision engineering, durability, and user-friendly operation for consistent sterilization results.

Our High-Pressure Rectangular Horizontal Autoclave Dealer in Gujarat offers versatile systems that sterilize laboratory equipment, glassware, and industrial components with maximum efficiency.

Standard Controls

Operating System

Multiple Operating Valve: Controls steam to jacket, chamber, exhaust, and vacuum drying from one point

Construction

Inner Chamber: SS 304L

Outer Chamber: SS 304

Door: SS 304L with radial shooting arm

Safety Features

Automatic Pressure Lock: Door opens only after full pressure release

Safety Valve: Protects against excess pressure

Accidental Vacuum Breaker: Prevents vacuum damage

Drying System

Quick Vacuum Drying: Uses sterile air for fast drying

Monitoring System

Pressure Gauge: Jacket pressure indication

Compound Gauge: Chamber pressure & vacuum

Plug Screen: Prevents lint/sediment entry

Condensate Line: With steam trap & check valve

Steam Generator

ISI heating elements

Auto water level control

Water level indicator with SS guard

Inlet & outlet valves

Pressure control switch

Electrical System

Air break contactor (Cut-Hamm)

Toggle switch with indicator lamps

Automation & Protection

Pressure Control (Indfoss Piezostat): Auto cut-off & restart

Water Cut-off Device: Prevents dry heating

Performance

Pressure: 1.2 kgf/cm² (15 min), 2.1 kgf/cm² (7 min)

Temperature: 121°C & 134°C

Hydro Test: Jacket 4.4 | Chamber 3.3 kgf/cm²g

Steam Exhaust: ~1 minute

Micro Processor PLC System (Standard)

Micro Processor PID Controller with Timer & Auto Stop

Digital Pressure Indicator

PC Interface / Printer Output option

Automatically controls sterilization hold time once the set pressure is achieved

Cycle completion indicated by buzzer

Available Sizes & Capacities

450 x 450 x 900 mm (W x H x D) – 180 Liters

450 x 450 x 1200 mm (W x H x D) – 240 Liters

600 x 600 x 900 mm (W x H x D) – 320 Liters

600 x 600 x 1200 mm (W x H x D) – 430 Liters

Optional Feature

Microprocessor Digital PLC System with Color Touch Screen HMI

Why Choose Patel Scientific Instruments Pvt. Ltd.?

As a leading High-Pressure Rectangular Horizontal Autoclave Manufacturer in Ahmedabad, we combine innovation, quality, and affordability. With ISO-certified equipment, minimal maintenance requirements, and rapid delivery within one week, our autoclaves meet dynamic industrial needs while ensuring reliability and safety.

Invest in a High-Pressure Rectangular Horizontal Autoclave from a dealer in Gujarat today to enhance your industrial sterilization process.
