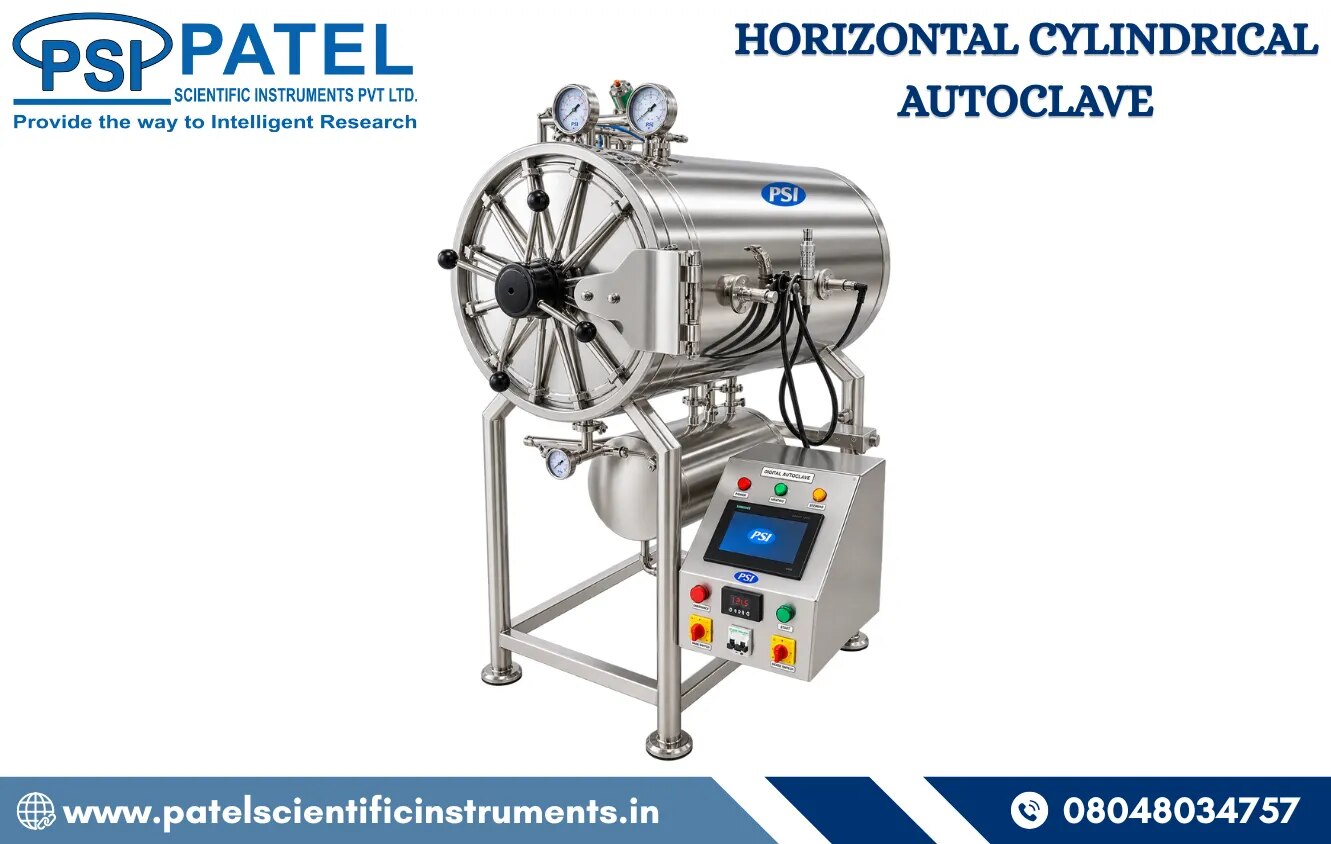

HORIZONTAL CYLINDRICAL AUTOCLAVE

Horizontal Cylindrical Autoclave Manufacturer in Ahmedabad

Patel Scientific Instruments Pvt. Ltd. is a trusted manufacturer of Horizontal Cylindrical Autoclaves in Ahmedabad. Our autoclaves are known for their reliability, safety, and efficiency. They are designed for use in laboratories, pharmaceutical companies, and industrial settings, ensuring effective sterilization even in tough conditions. Built for precision and durability, our autoclaves consistently sterilize equipment, media, and instruments. They are widely used in the pharmaceutical and chemical industries to eliminate bacteria, viruses, and spores, helping maintain strict hygiene standards.

Horizontal Cylindrical Autoclave Specifications

Our Horizontal Cylindrical Autoclave is built from durable materials and precision components to ensure long-lasting, safe, and efficient sterilization.

Construction Details:

• Chamber – SS 304L (4 mm thickness)

• Jacket – MS Boiler Quality (6 mm thickness)

• Outer Cover / Panel Box – MS (1 mm thickness)

• Stand – MS (12 SWG round pipe)

• Door – SS 304 (12.5 mm thickness)

• Locking Rod – MS chrome plated (20 × 20 mm thickness)

Salient Features:

• Working Pressure:

1.2 kgf/cm² for 15 minutes

2.1 kgf/cm² for 7 minutes

• Working Temperature:

121°C for 15 minutes

134°C for 7 minutes

• Hydro Test Pressure:

Jacket: 4.4 kgf/cm²g

Chamber: 3.3 kgf/cm²g

• Steam Exhaust Time: 1 minute

• Sterilization Period: 15–20 minutes

Detailed Controls & Fittings:

• Multi-port / Solenoid Valve for steam flow control

• Radial arm type single door with automatic pressure locking

• Quick vacuum drying system for faster drying

• Accidental vacuum breaker for jacket safety

• Safety valve for excess pressure protection

• Chamber temperature gauge (dial type)

• Plug the screen to block large particles

• Condensate pipeline with steam trap & check valve

• Pressure gauge for jacket & boiler

• Compound gauge for pressure & vacuum

• Drain line with SS funnel & water trap

Steam Generator Features:

• Water immersion type heating elements (ISI marked – 18/12 KW)

• Magnetic automatic water level switch

• Water level indicator with SS guard

• Water inlet & outlet valves (NR type)

• Automatic pressure stat switch

Control System:

• Digital Temperature Controller (Semi-Automatic Model):

Displays set temp, set time, and actual temp.

Buzzer alarm after cycle completion

• Electrical Control Box:

Heavy-duty air break contactor

Heater ON/OFF switch

Process toggle switch with indicator lamps

Available Sizes & Capacity

• 400 × 600 mm (Dia × Height) – 78 Liters

• 450 × 1100 mm (Dia × Height) – 170 Liters

• 500 × 900 mm (Dia × Height) – 170 Liters

• 500 × 1200 mm (Dia × Height) – 185 Liters

• 600 × 1200 mm (Dia × Height) – 300 Liters

Optional:

• Microprocessor Digital PLC System with Color Touch Screen HMI

Wrap-Up

If you need a reliable Horizontal Cylindrical Autoclave exporter from India, Patel Scientific Instruments Pvt. Ltd. is ready to support your requirements. Get in touch with us today to explore customized solutions tailored to your exact requirements, or to request a quote.
