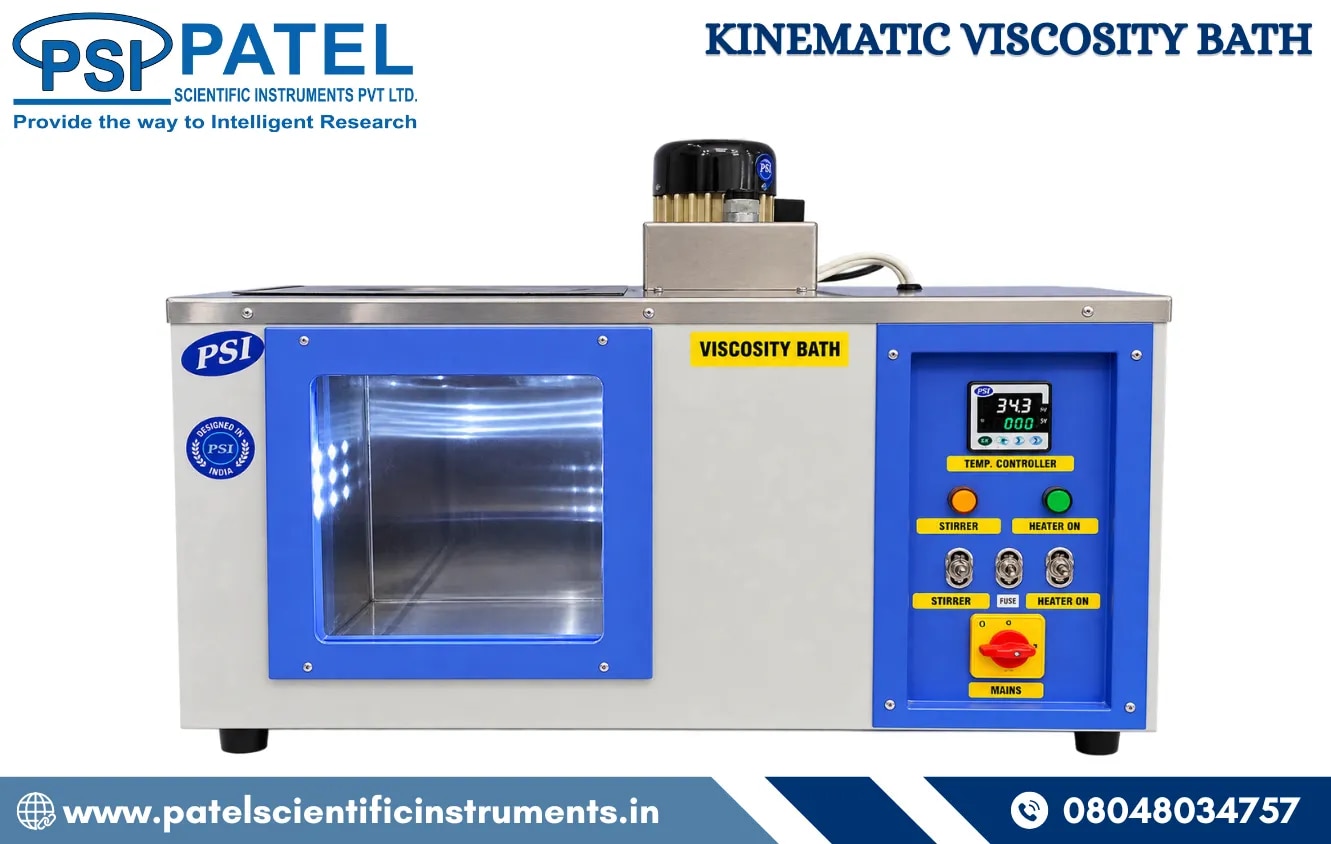

KINEMATIC VISCOSITY BATH

Kinematic Viscosity Bath Manufacturer from Ahmedabad.

Kinematic viscosity is a critical factor in oils, measuring their resistance to flow. A Kinematic Viscosity Bath is an essential laboratory instrument used to measure the kinematic viscosity of various oils such as crude oil, lubricating fluids, diesel fuel, peanut oil, and other petroleum-based liquids. Viscosity baths manufactured by Patel Scientific Instruments Pvt. Ltd. are successfully used across multiple industries including automobile, food processing, and pharmaceutical laboratories.

Our viscosity bath units provide constant and uniform temperature control across the full operating range, available with or without refrigeration facilities. We offer standard models with a wide temperature range of 5°C above ambient to 150°C, suitable for diverse testing requirements.

The viscosity bath range is ruggedly designed for long-lasting performance. These units feature stainless steel inner construction, while the outer cabinet is made of powder-coated mild steel with two side-sealed glass

windows for clear observation. An illumination provision is included, and a fluorescent lamp can be fitted on request.

As a trusted High Temperature Oil Bath Manufacturer in Ahmedabad, Patel Scientific Instruments Pvt. Ltd. delivers reliable and precision-engineered solutions for accurate viscosity testing applications.

Features

• Meets ASTM D445 and IP-71 Standards

• Available with and without refrigeration facility

• Over-temperature and low bath level protection

• Can accommodate up to 4 viscometers

• High-grade stainless steel inner chamber

• Digital PID temperature controller

Specifications

• Inner Size:

• 12 x 6 x 12 Inch (2 Viscometers)

• 12 x 9 x 12 Inch (4 Viscometers)

• Temperature Range: 5°C above ambient to 150°C

• Temperature Sensor: PT-100

• Temperature Controller: PID Controller with Accuracy ±0.5°C

• Construction:

• Inner Chamber: SS 304

• Outer Body: MS Powder Coated

• Insulation: Glass Wool

• Window: 2 Side Toughened Glass Windows

• Light: 1 Tube Light

• Heating System: Tubular heater vertically fitted inside chamber (2.0 KW)

• Stirring System: S.S. shaft with motorized stirring

• Power Supply: 230 Volts, 50 Hz

• Accessories: Viscosity Holder (Universal Type)

Size Options

• 2 Viscometer Models

• 4 Viscometer Models

Take your laboratory testing to the next level—contact Patel Scientific Instruments Pvt. Ltd. now to experience premium Kinematic Viscosity Bath solutions that deliver unmatched accuracy, reliability, and durability. Don’t wait—elevate your results today!
