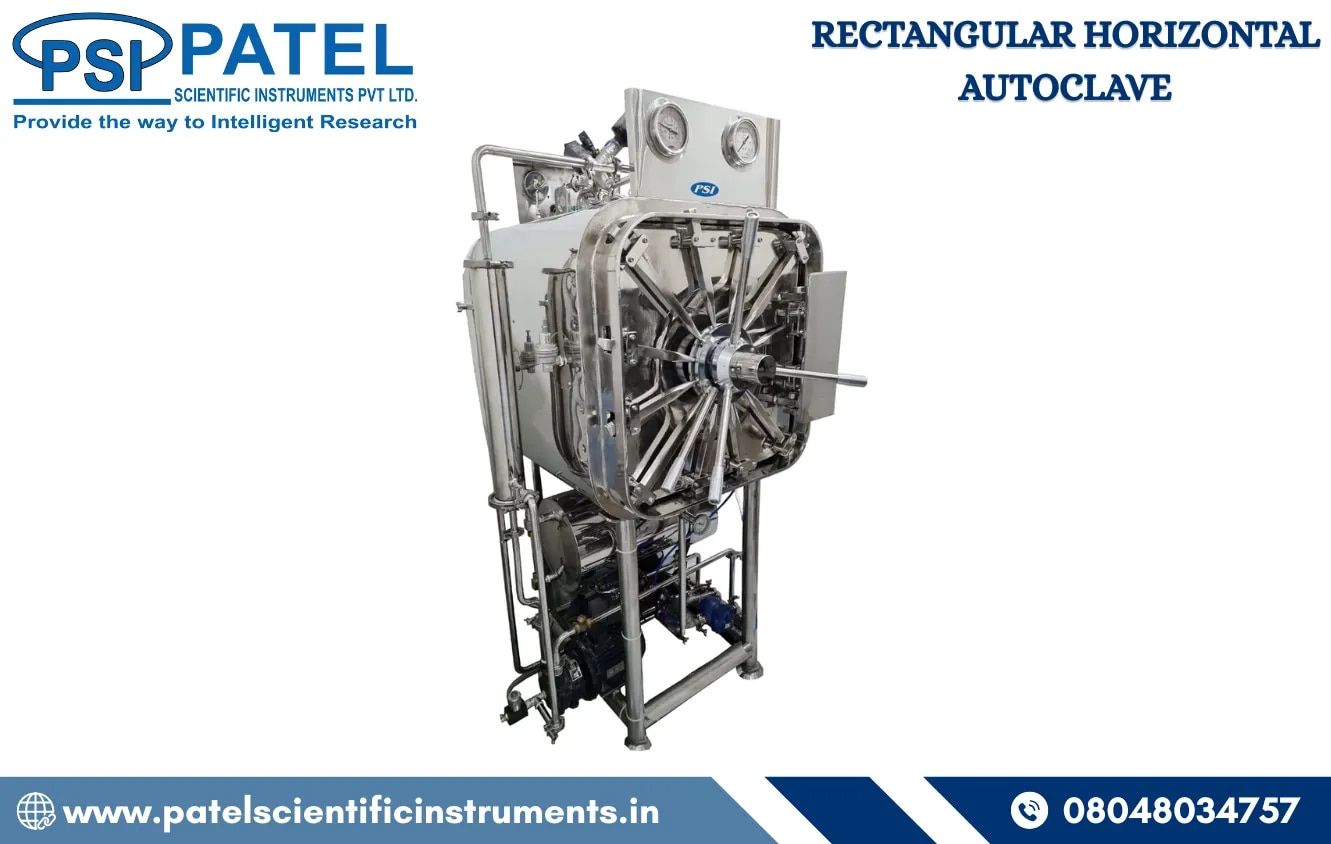

RECTANGULAR HORIZONTAL AUTOCLAVE

Rectangular Horizontal Autoclave Dealer in Ahmedabad

Patel Scientific Instruments Pvt. Ltd. produces Rectangular Horizontal Autoclaves engineered for robust, high-capacity sterilization. Each unit maintains reliable steam pressure and precise temperature control, suitable for applications in pharmaceutical, laboratory, hospital, and industrial settings. As a Leading Rectangular Horizontal Autoclave Manufacturer in Ahmedabad, we emphasize durable build, consistent efficiency, and extended operational life for demanding environments.

Standard Controls

Operating System

Multiple Operating Valve: Controls steam to jacket, chamber, exhaust, and vacuum drying from a single point

Construction

Inner Chamber: SS 304L

Outer Chamber: SS 304

Door: SS 304L with radial shooting arm

Safety Features

Automatic Pressure Lock: Door opens only after pressure release

Safety Valve: Prevents excess pressure

Accidental Vacuum Breaker: Protects against vacuum damage

Drying System

Quick Vacuum Drying: Ensures fast drying using sterile air

Monitoring System

Pressure Gauge: Jacket pressure

Compound Gauge: Chamber pressure & vacuum

Plug Screen: Blocks lint/sediment

Condensate Line: With steam trap & check valve

Steam Generator (Boiler)

ISI heating elements

Auto water level float switch

Water level indicator with SS guard

Water inlet & outlet valves

Pressure stat control system

Electrical System

Air break contactor (Cut-Hamm make)

Toggle switch with indicator lamps

Automation & Safety

Pressure Control (Indfoss Piezostat): Auto cut-off & restart

Water Cut-off Device: Prevents dry heating

Performance

Pressure:

o1.2 kgf/cm² (15 min)

o2.1 kgf/cm² (7 min)

Temperature:

o121°C & 134°C

Hydro Test Pressure:

oJacket: 4.4 kgf/cm²g

oChamber: 3.3 kgf/cm²g

Steam Exhaust Time: ~1 minute

Microprocessor PLC System

PID controller with timer & auto stop

Digital pressure indicator

PC interface/printer output

Once the chamber reaches the required pressure level, the system automatically regulates the sterilization holding time for the media. After the preset time has elapsed, the unit activates an audible buzzer alarm, indicating that the sterilization cycle is complete and the sterilized media can be safely removed.

Available Sizes & Capacity

• 450 x 450 x 900 mm (W x H x D) – 180 Liters

• 450 x 450 x 1200 mm (W x H x D) – 240 Liters

• 600 x 600 x 900 mm (W x H x D) – 320 Liters

• 600 x 600 x 1200 mm (W x H x D) – 430 Liters

Optional Feature

Microprocessor Digital PLC System with Color Touch Screen HMI

Why Choose Patel Scientific Instruments Pvt. Ltd.?

We provide more than equipment—we deliver solutions. Our mission is to supply autoclaves meeting genuine industrial requirements. Each unit undergoes strict inspections and holds ISO certification for reliability and safety.

If you’re looking for a durable, efficient, and cost-effective sterilization solution, the Rectangular Horizontal Autoclave is an ideal investment. Backed by advanced engineering and trusted expertise, Patel Scientific Instruments Pvt. Ltd. continues to serve as a dependable Rectangular Horizontal Autoclave Supplier in India, delivering excellence with every unit.
