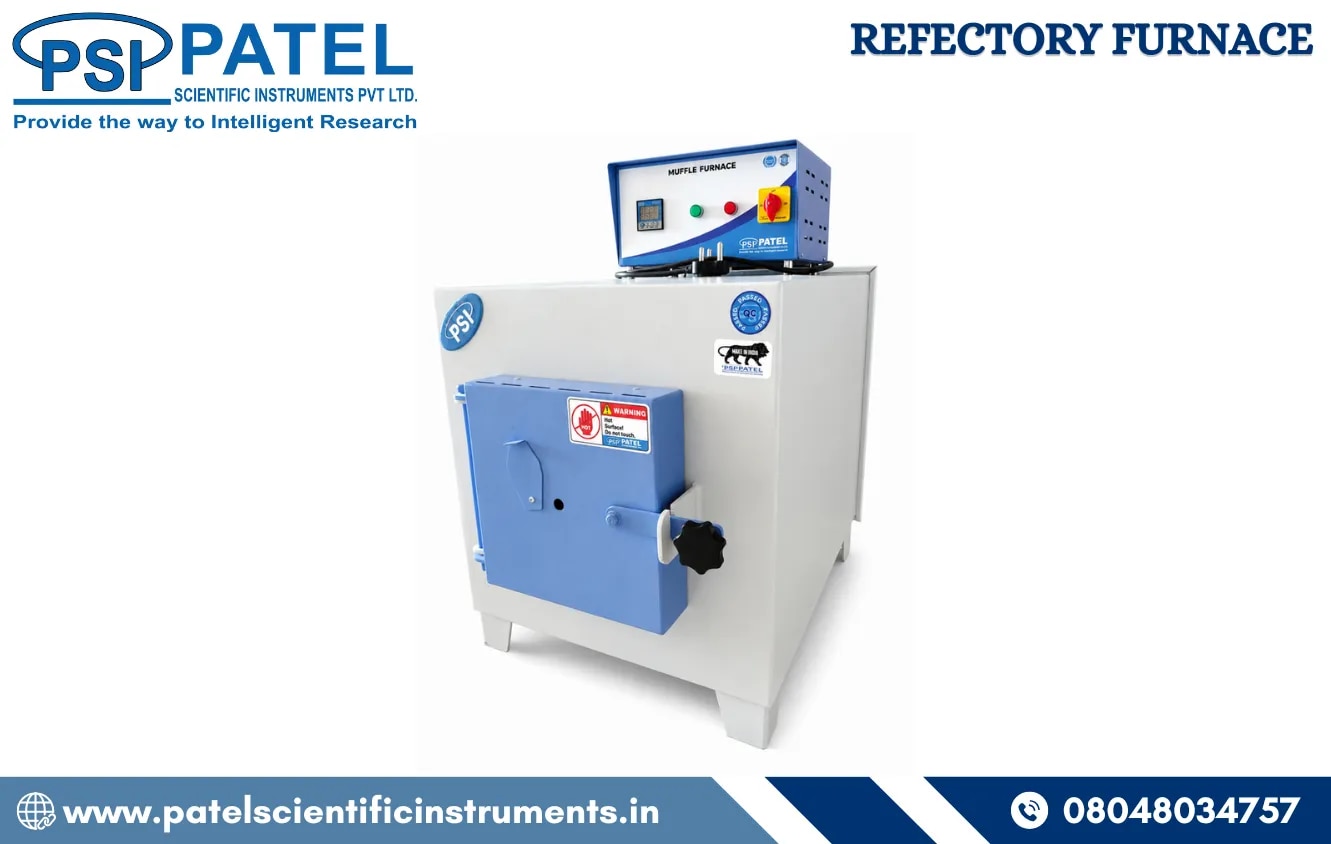

REFECTORY FURNACE

Refectory Furnace Manufacturer in Ahmedabad

Leveraging rich industry experience, we manufacture, export, and supply a high-quality range of Refractory Furnaces. Designed in our advanced production facility using premium-grade materials, these furnaces are widely appreciated for durability, low energy consumption, sturdy construction, ergonomic design, and seamless finish. Available in various technical specifications, our furnaces meet diverse industrial requirements.

Construction

• Strong and sturdy construction using mild steel sheets with MS angle frame, powder-coated finish

• Working chamber made of silimenite grooved refractories

• Faster heat-up time compared to traditional furnace designs

Heating

• High-performance free-radiating coiled wire heating elements placed on all sides

• Ensures uniform temperature distribution throughout the chamber

• Equipped with high-temperature Kanthal A-1 heating elements

Insulation

• Insulated with ceramic fiber blankets to reduce heat loss

• Uses low thermal mass insulation blankets and fiber boards instead of bricks

• Enables faster heating & cooling, lightweight and compact design

Temperature Range

• Maximum operating temperature: 900°C to 1150°C

• Controlled by microprocessor-based PID temperature controller

Power Supply

• 220/240V Single Phase or 400/440V Three Phase, 50 Hz AC

Available Inner Dimensions

• 9” × 4” × 4”

• 12” × 6” × 6”

Why Choose Us?

Patel Scientific Instruments Pvt. Ltd. provides high-performance furnaces designed for:

Enhanced durability and low energy consumption

Seamless construction with ergonomic designs

Quick heating and uniform temperature distribution

Reliable support and service

Whether you are a large manufacturer or laboratory, our Refractories for Furnace Manufacturers deliver unmatched performance and value.

Contact us to discover why we are recognized as a premier Refractory Furnace Supplier in India for quality and innovation.
