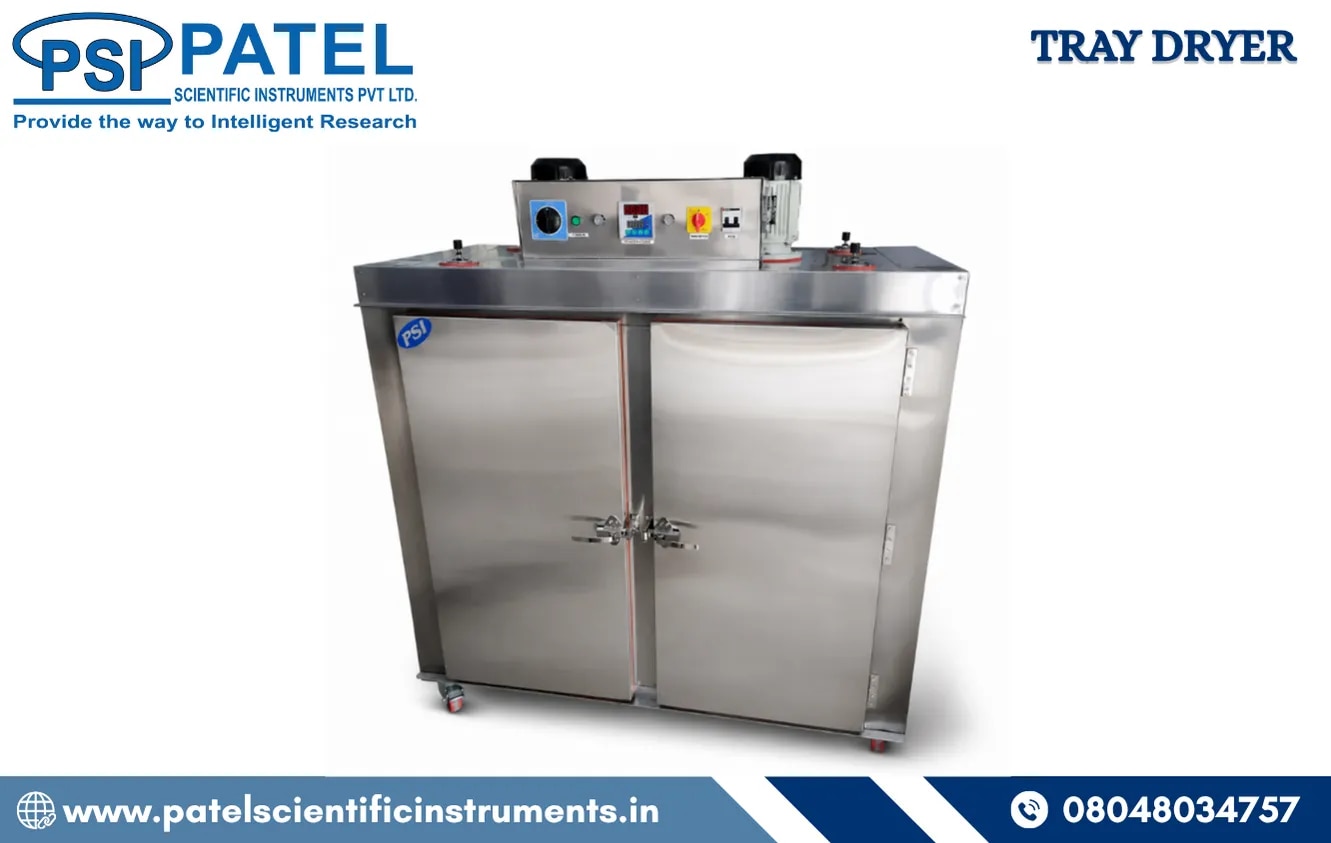

TRAY DRYER

Tray Dryer Dealer in Ahmedabad

The PSI-073 Tray Dryer is a high-performance drying unit designed for efficient moisture removal in pharmaceutical, chemical, food processing, and laboratory applications. It is engineered with robust construction, uniform air circulation, and precise temperature control to ensure consistent drying results with excellent energy efficiency.

Manufactured using a strong MS angle-frame, double-wall cabinet, the unit is lined internally and externally with high-grade MS sheets and insulated with thick glass wool to minimize heat loss and improve thermal efficiency. As a reliable Tray Dryer Supplier from Gujarat, we provide durable, high-quality drying solutions tailored to diverse industrial requirements.

Key Features:

• Heavy-duty MS double-wall insulated cabinet construction

• High-quality insulation with 60 mm glass wool for heat retention

• Airtight hinged doors with asbestos gasket sealing

• Uniform heating through SS 304 U-type air heaters

• Forced air circulation using a heavy-duty axial flow aluminum blower

• Adjustable ventilators for the removal of hot gases and fumes

• Microprocessor-based PID temperature controller system

• Safety features, including overload protection and indicator lamps

• High-temperature resistant industrial painting finish

Temperature System:

• Temperature range: 50°C to 150°C

• RTD 3-wire sensor for accurate measurement

• Accuracy: ±1°C or better

• Maximum working temperature: up to 100°C controlled operation range

Air Circulation System:

• Heavy-duty axial flow blower for uniform air distribution

• Ensures consistent drying across all trays

• Indicator lamps for motor operation status

Tray & Loading System:

• Capacity: 48 Trays

• Tray Size: 32” × 16” × 1¼” (Aluminium)

• Fixed rack system for 48-tray model

• Optional trolley system available for easy loading/unloading

Heating System:

• SS 304 U-type air heaters (1 KW each)

• Total power: 12 KW

• Heater protection inside the tubular casing for safety

• External heater terminals for safe operation

Control Panel:

• Microprocessor-based PID temperature controller

• Contactor, overload relay, fuses, and indicators included

• Main isolator switch for safety operation

Contact us today for the best quote and product details!
