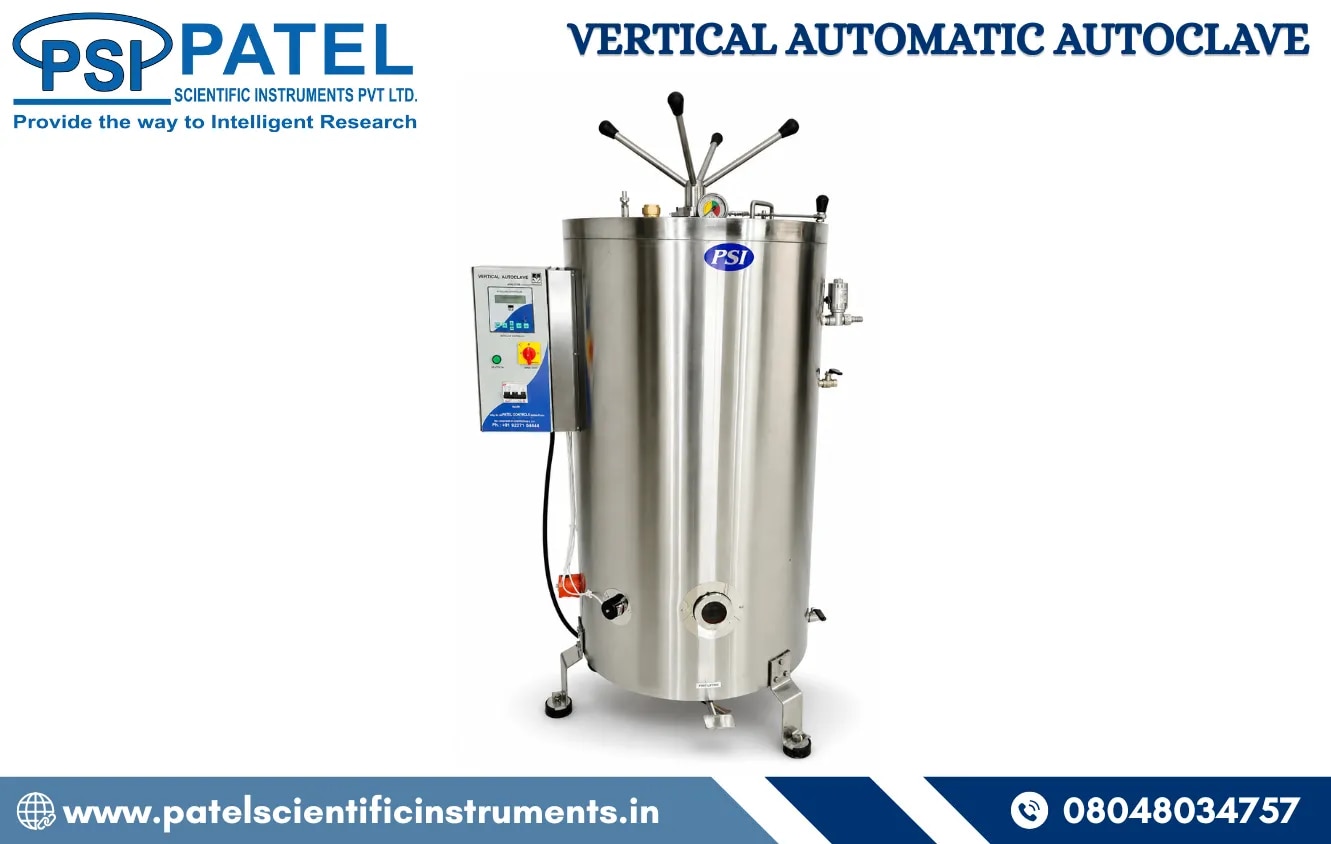

VERTICAL AUTOMATIC AUTOCLAVE

Vertical Automatic Autoclave Dealer in Ahmedabad

A Vertical Automatic Autoclave is a high-performance sterilization system designed to operate using saturated steam pressure, adjustable between 5 and 20 PSI. Engineered with a double-wall structure, the inner boiler is fabricated from robust 16 SWG stainless steel and fitted with a durable silicone rubber gasket. Each unit is hydraulically tested up to 40 PSI to ensure maximum operational safety and reliability.

As a prominent Vertical Automatic Autoclave Manufacturer in Ahmedabad, we deliver advanced systems equipped with essential safety mechanisms, including a low-water-level cut-off, a precision pressure gauge, a steam release valve, a spring-loaded safety valve, and an efficient heating system. The unit comes ready to operate on a standard 230V AC supply and includes a microprocessor-based PID controller with a timer for precise sterilization control. Fully stainless steel construction ensures hygienic performance and long service life.

Vertical Automatic Autoclave – Fully Automatic (Double Wall)

Being a trusted Vertical Automatic Autoclave Manufacturer in Ahmedabad, we provide fully automatic sterilization solutions designed for consistent, efficient, and safe operation across diverse industries.

Key Features & Applications

Ideal for microbiology labs, hospitals, pharmaceutical units, research centers, and industrial sterilization processes

Double-wall construction with an inner chamber made from SS 304 (16 SWG) and a mirror-finished SS 304 outer body

Air-insulated design enhances heat retention and energy efficiency.

Argon arc welding ensures leak-proof construction and durability.

Heavy-duty stainless steel lid equipped with:

oPressure gauge

o Steam exhaust valve

oSpring-loaded safety valve

o¼” BSP validation port

User-friendly foot lifting mechanism for lid handling

Drain valve for easy cleaning and maintenance

High-performance flange heaters for uniform heat distribution

Automation & Control System

Fully automatic sterilization cycle:

Air Purging → Sterilization Hold → Pressure Release → Alarm

Microprocessor-based controller for accurate time and temperature programming

Timer range: 1 to 99 minutes

PT-100 temperature sensor for precise monitoring

Automatic heater shut-off with low water level alarm for added safety

Additional Features

Supplied with a perforated SS 304 basket

Operates on 230V AC, single phase, 50 Hz

Designed for consistent, safe, and efficient sterilization

Technical Specifications

Temperature Range: 121°C to 124°C

Temperature Resolution: 0.1°C

Pressure Range: 15 to 20 PSI (Factory preset at 15 PSI)

HSN Code: 84192010

Model Specifications – Vertical Automatic Autoclave

PSI-VAC40L

Size: 300Ø × 500 mm (12” × 20”)

Capacity: 40 Liters

Power: 2000 Watts

Baskets: 1

PSI-VAC52L

Size: 350Ø × 550 mm (14” × 22”)

Capacity: 52 Liters

Power: 3000 Watts

Baskets: 1

PSI-VAC80L

Size: 400Ø × 600 mm (16” × 24”)

Capacity: 80 Liters

Power: 4000 Watts

Baskets: 1

PSI-VAC98L

Size: 450Ø × 600 mm (18” × 24”)

Capacity: 98 Liters

Power: 4000 Watts

Baskets: 1

PSI-VAC120L

Size: 450Ø × 750 mm (18” × 30”)

Capacity: 120 Liters

Power: 5000 Watts

Baskets: 2

PSI-VAC152L

Size: 550Ø × 750 mm (22” × 30”)

Capacity: 152 Liters

Power: 6000 Watts

Baskets: 2

PSI-VAC200L

Size: 550Ø × 900 mm (22” × 36”)

Capacity: 200 Liters

Power: 7000 Watts

Baskets: 2

Why Choose Patel Scientific Instruments Pvt. Ltd.?

As a reputed Vertical Automatic Autoclave Exporter from South Africa, Patel Scientific Instruments Pvt. Ltd. is known for delivering high-quality sterilization solutions globally. The company ensures:

Strong export network across Asia, Europe, and America

Flexible payment options, including COD

Strict quality control and consistent product performance

Advanced technology backed by industry expertise

If you are searching for a reliable Vertical Automatic Autoclave Dealer in Gujarat, Patel Scientific Instruments Pvt. Ltd. offers the perfect combination of innovation, durability, and value for your investment.
