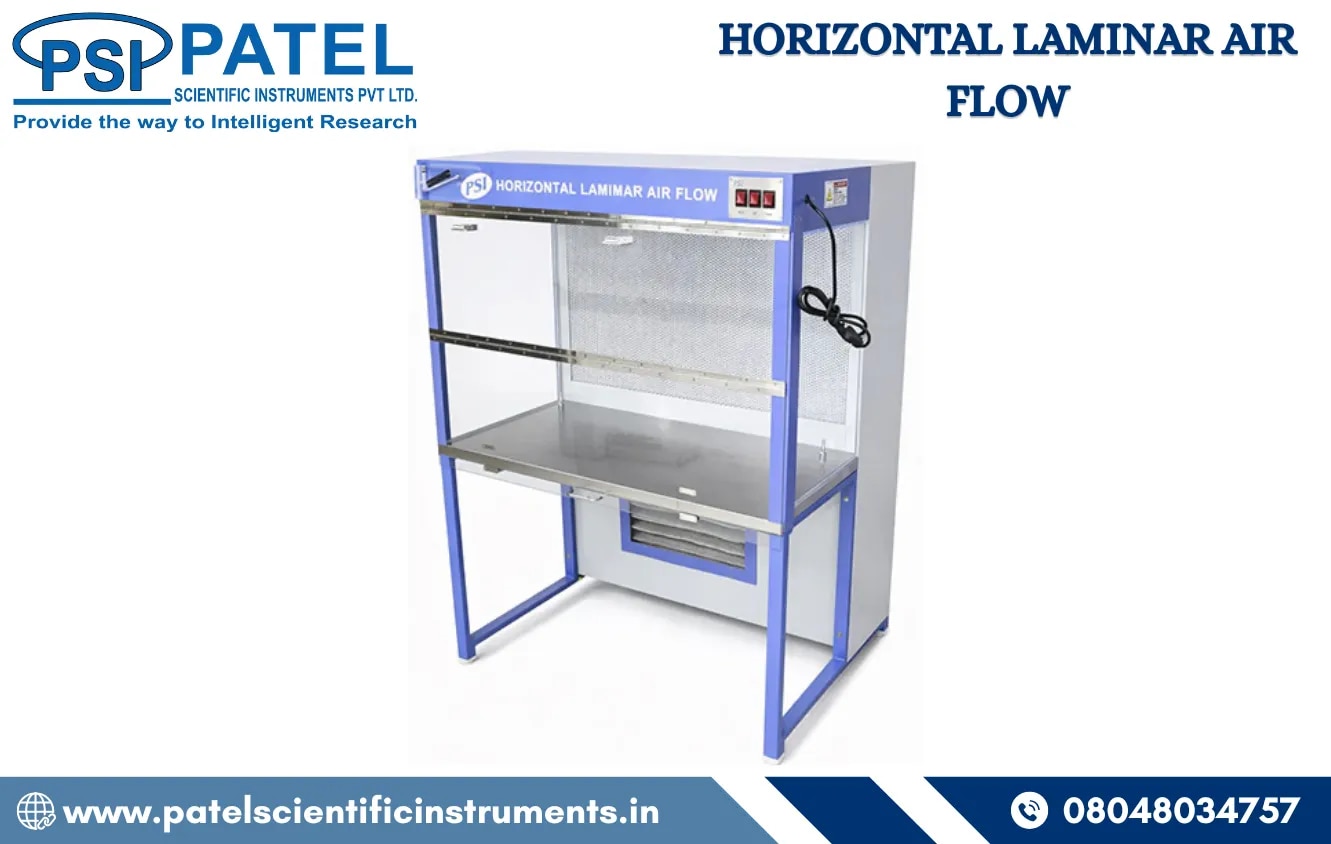

HORIZONTAL LAMINAR AIR FLOW

Horizontal Laminar Air Flow Manufacturer in Ahmedabad

PSI Horizontal Laminar Airflow System is ideal for Microbiological manipulations, work with bioassays, sterility testing, and research; vial filling and bunging operations in parenteral units, and general dry processing work in semiconductor manufacturing and Tissue culture. Horizontal Laminar Airflow (unidirectional Airflow) is a controlled, clean working zone where air flows at a uniform speed in parallel, streamlined paths, ensuring a continuous and consistent wash of HEPA-filtered air across the entire work surface. HEPA-filtered air is moving horizontally across the work area. The uniform stream of filtered air flows smoothly from the rear to the front, passing evenly over the work surface. The airflow moves directly towards the operator and is then safely exhausted into the surrounding environment, ensuring a clean and contamination-free workspace, making it a reliable choice from a Horizontal Laminar Air Flow Manufacturer in Ahmedabad.

The floor-mounted version is best suited for spaces with sufficient room for installation.

Product: PSI Horizontal Laminar Airflow – Standard Version

Application: Tissue Culture / Biotechnology / Microbiology, etc.

MOC: Galvanized Iron with Powder Coated / Stainless Steel – Satin Finish

Pre Filter: PSI Make Pre Filter with Micro Glass Fiber Media of EU-4 Rating

HEPA filter: Provides 99.97% efficiency at 0.3 microns.

Motor Blower Assembly: Induction Motor with Centrifugal Blower (Statistically & Dynamically Balanced)

Working Table: SS 304 with Reinforcement for Stability

U.V. Light: UV Light for Sterilization

Side panel accessory: Available in clear acrylic or UV-protected polycarbonate.

Pressure Gauge: USA Minihelic Differential Pressure Gauge / PSI Inclined Manometer

Lights: Fluorescent Tube with Milky White Diffuser

Magnehelic differential pressure gauge: Measures the pressure difference across the supply HEPA filter.

Performance

Air cleanliness: Meets ISO Class 5 standards per ISO 14644-1.

Airflow rate: 0.45 ± 0.05 meters per second (90 FPM ± 20 FPM).

Illumination: Provides at least 800 LUX on the work table.

Noise level: Less than 67 dB on the 'A' scale.

Vibration level: Kept to a minimum.

Available Models & Custom Options

We offer multiple standard sizes to suit different workspace requirements:

PSI-HLAF600 – 600 × 600 × 600 mm

PSI-HLAF900 – 900 × 600 × 600 mm

PSI-HLAF1200 – 1200 × 600 × 600 mm

PSI-HLAF1800 – 1800 × 600 × 600 mm

Custom-built configurations are also available to meet specific lab needs, making us a preferred Horizontal Laminar Air Flow Exporter from India.

Why Choose Patel Scientific Instruments Pvt. Ltd.?

Choosing the right laminar airflow system isn’t just about specifications—it’s about trust. With years of experience, we understand the practical challenges faced in labs and industries. That’s why every unit we deliver is built for consistent performance, durability, and ease of use.

Whether you’re setting up a new lab or upgrading existing infrastructure, our laminar airflow systems provide the clean, controlled environment your work demands.
