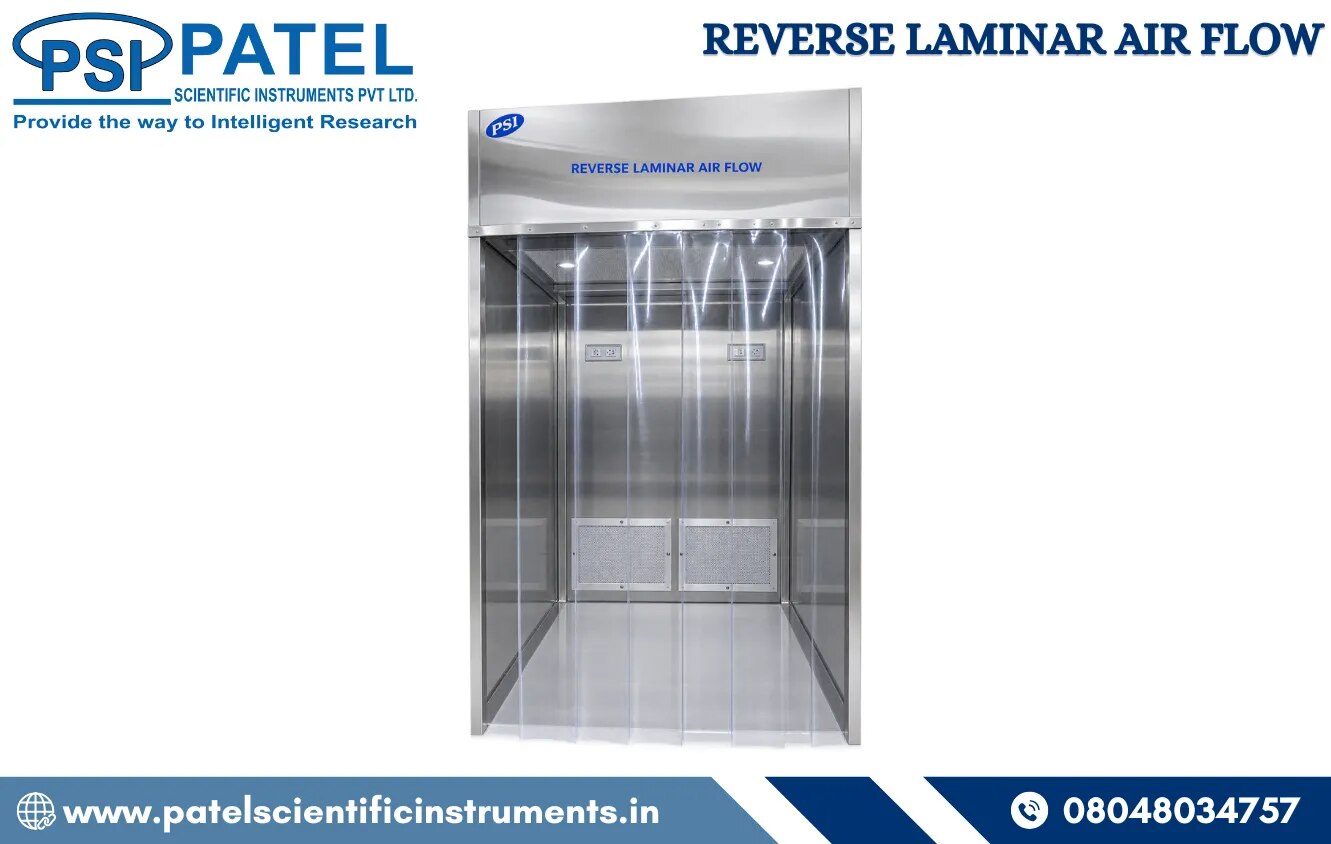

REVERSE LAMINAR AIR FLOW

Reverse Laminar Air Flow Manufacturer in Ahmedabad

It is also known as a Sampling Booth or Dispensing Booth. It is used to control hazardous emissions of powder, dust, or vapour during powder dispensing, drum tipping, and product sampling, without risk to the operator or environment. These systems are available in a wide modular range of sizes and are constructed from stainless steel in fully ducted designs, making them an ideal solution for Reverse Laminar Air Flow in Ahmedabad.

Main Design Features

The work area is separated from the external environment by the following devices:

The reverse laminar flow booth is made of a Stainless Steel AISI 304 scotch-brite finish, self-supporting structure with rounded corners for easy cleaning.

Negative pressure inside the booth prevents fine powder from escaping from the work area to the external environment.

A perforated stainless steel diffuser panel protects the upper filtration section.

5/15 amps electrical points are provided on the panel.

CFL lighting with a diffuser provided on the panel.

The internal height can be adjusted to meet your needs. The standard height is 6 feet (1830 mm).

Application

Product sampling, large-scale dispensing, and weighing.

Specifications

Filters: Aluminum-framed HEPA filter, minimum efficiency 99.99% at 0.3 micron

Exhaust Filter: Aluminum-framed HEPA filter, minimum efficiency 99.99% at 0.3 micron

Pre Filter: Washable pleated pre-filter, 90% efficiency, EU4 rating

Construction: 18 gauge (1.2 mm) Stainless Steel 304

Air Flow: 90 FPM (0.45 m/s) ± 10 FPM (0.05 m/s), measured 6 inches (152.4 mm) from diffuser screen

Uniformity: ± 20% of average or better

Noise Level: 65 ± 5 dB measured from filter face

Motor / Blower Assembly: Direct drive, continuous duty ¼ HP with sealed bearings, mounted on FRP casing to reduce noise & vibration, dynamically balanced

Plenum: Stainless Steel 304 for air distribution, designed in negative pressure to prevent escape/bypass of HEPA filtration

Finish: Matt

Available Models & Working Dimensions

PSI-RLAF900 – 900 x 600 x 1800 mm

PSI-RLAF1200 – 1200 x 600 x 1800 mm

Why Choose Patel Scientific Instruments Pvt. Ltd.?

As a trusted Reverse Laminar Air Flow manufacturer in Ahmedabad, we are dedicated to providing durable, precise, and safe equipment. Our focus on quality and innovation has made us a preferred supplier in Gujarat and a reliable exporter from India.

If you need reliable contamination control solutions, our Reverse Laminar Air Flow systems are designed to meet and exceed your expectations.
