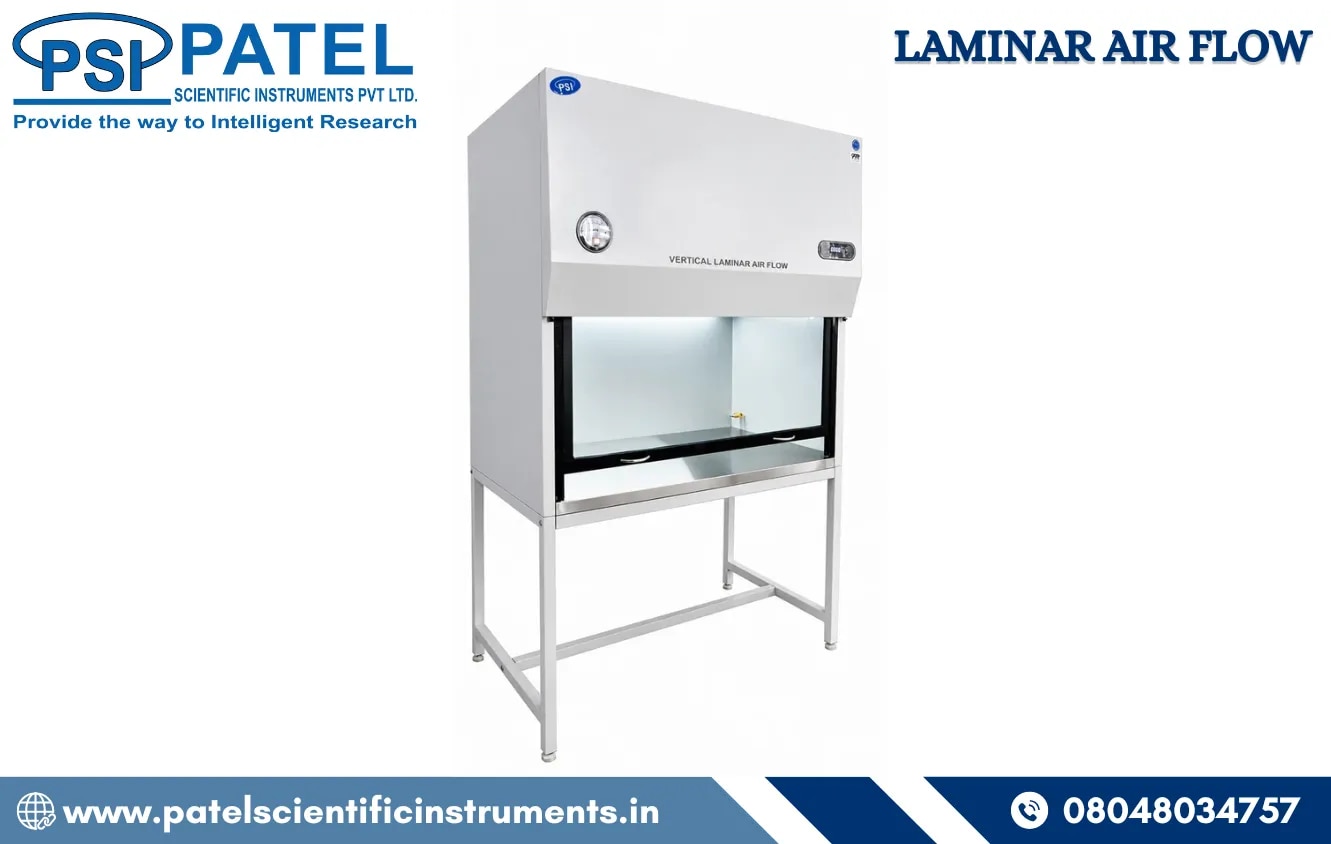

LAMINAR AIR FLOW

Vertical Laminar Air Flow Manufacturer in Ahmedabad

At Patel Scientific Instruments Pvt. Ltd., we specialize in delivering advanced clean-air solutions through our high-performance Laminar Air Flow systems. As a trusted Vertical Laminar Air Flow Manufacturer in Ahmedabad, we design equipment that ensures a contamination-free environment, which is essential for laboratories, pharmaceutical facilities, and research facilities.

A laminar airflow cabinet works by directing filtered air in a uniform stream, effectively removing airborne contaminants. This makes it ideal for sensitive processes like microbiological work, tissue culture, and electronic assembly, where even minor contamination can affect results.

Key Features of the Vertical Laminar Air Flow Cabinet

• Side panels constructed using thick transparent plexiglass that comes in a duly framed finish

• Unit comes equipped with a pre-filter, HEPA filter, fluorescent lamp, UV germicidal lamp, gas valve, and manometer for efficient performance.

• Air drawn through the pre-filter passes through highly efficient HEPA filters (efficiency up to 99.99%) that capture airborne particles sized 0.3 micron and larger.

• The blower and motor assembly includes a statically and dynamically balanced 1/4 horsepower (HP) motor.

• Motor designed to deliver performance with minimum noise levels

• Main filter support provided in the form of a HEPA Filter

• Pre-filtration is provided by a washable synthetic pre-filter.

• Sterilization support provided through the use of a UV germicidal tube

• Plexiglass-based sliding front door with illumination provided by a fluorescent lamp.

• The system is also supported by an analog-type manometer

Technical Specifications

MOC Cabinet: Mild Steel Powder Coated / Stainless Steel

Main Filter: HEPA Filter (99.97% Efficient at 0.3 Micron Particles)

Pre-filter: Washable Synthetic Pre-Filter

Sterilization: UV Germicidal Tube

Magnehelic Differential Pressure Gauge: Measures the differential pressure across the HEPA filter.

Illumination: Fluorescent Tube

Front Door: Sliding Door Plexiglass

Manometer: Analog Type

No. of HEPA Filters: 1

Electric Supply: AC 230V, 50/60Hz

Available Models & Working Dimensions

PSI-VLAF600 – 600 x 600 x 600 mm

PSI-VLAF900 – 900 x 600 x 600 mm

PSI-VLAF1200 – 1200 x 600 x 600 mm

PSI-VLAF1800 – 1800 x 600 x 600 mm

Trusted Across India & Beyond

Recognized as leading Vertical Laminar Air Flow Exporters from India, we differentiate our products through stringent quality standards, innovative design, and customer-centric service. Our laminar airflow systems are trusted by clients across industries and geographies for their consistent performance, safety, and reliability—making them a preferred choice for research labs in India and industrial setups overseas.

At Patel Scientific Instruments Pvt. Ltd., we go beyond manufacturing—we provide solutions that empower professionals to achieve unparalleled precision, cleanliness, and confidence, ensuring their work consistently meets the highest standards.
