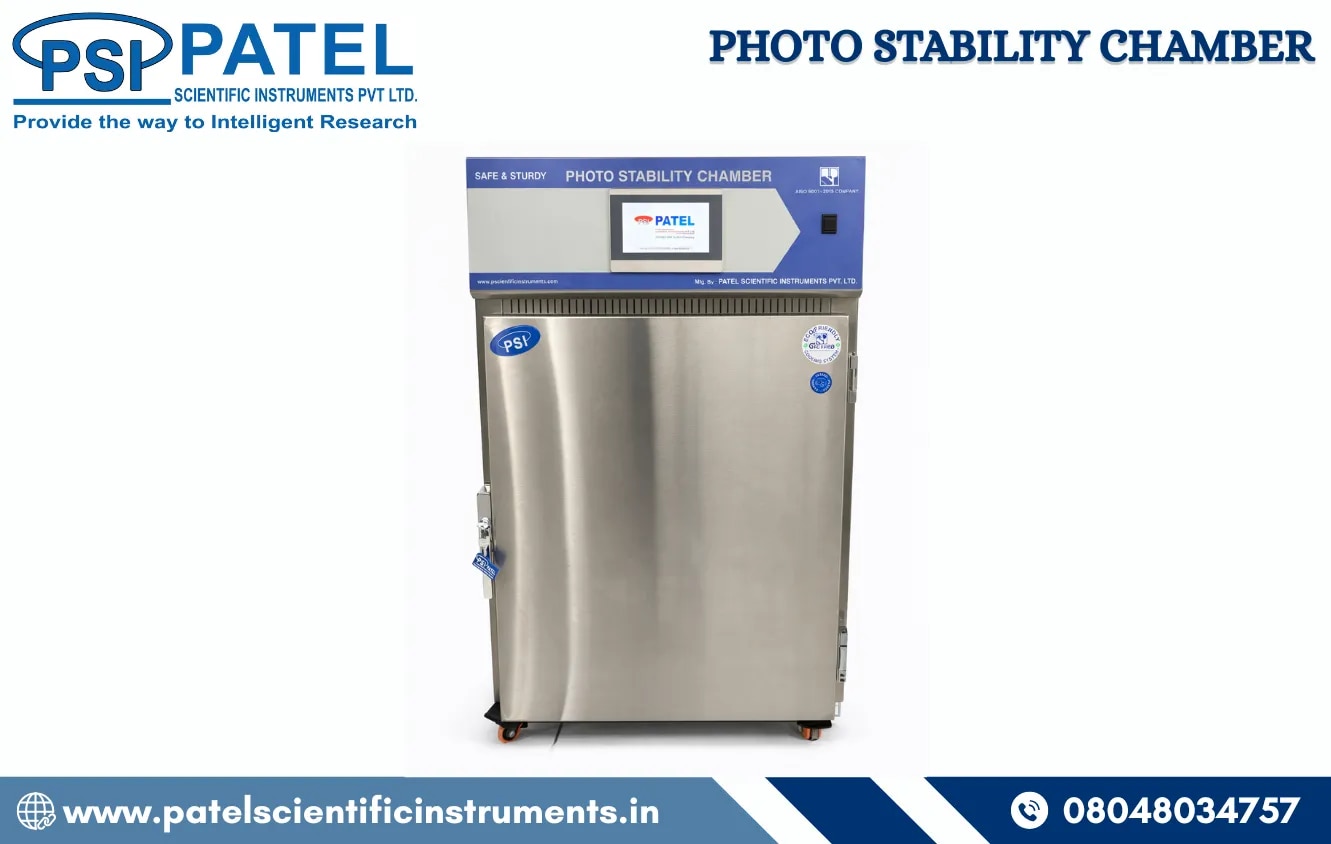

PHOTO STABILITY CHAMBER

Photo Stability Chamber Dealer in Ahmedabad

A Photo Stability Chamber is specialized laboratory equipment used to test how products react to light over time. It simulates environmental conditions defined by ICH guidelines, ensuring that drugs, cosmetics, and other sensitive materials remain stable, safe, and efficacious.

As one of the Top Stability Chamber Manufacturers in India, PSI ensures that every unit is built to deliver accurate, consistent testing results.

Standard Features

• Double walled modular structure with 3” thick PUF insulation

• Inner chamber made of Stainless Steel 304 Mirror Finish and outer body of Stainless Steel 304

• Fluorescent tubes for daylight effect and UV tubes for ultraviolet rays as per ICH Guidelines, meeting lighting energy requirement of 1.2 million lux hours and UV-A light 200 watt hours/m²

• Complete with standby refrigeration system in case the regular system fails

• Inside observation glass door with foam type neoprene gasket

• PLC-based data logging of UV and LUX readings along with date, time, temperature (and humidity if selected)

• Automatic switch-off of UV and fluorescent light after test completion with alarm indication

• UV light automatically switches OFF when the door is open

• Supplied with 1 Stainless Steel perforated tray and 1 Light Bank

• U-shaped Stainless Steel Nichrome wire air heaters

• Compressor with CFC-free R134A / R404 eco-friendly refrigerant

• PLC based control system with 7” color HMI

• Safety thermostat sensor to cut off sthe upply in case of temperature overshoot or undershoot

• Supplied with complete IQ, OQ, PQ documentation, operation manual, and maintenance manual

• Operates on 230V AC single phase, 50 Hz

Optional Features

• 21 CFR Part 11 compliance window-based communication software for data management

• Humidity control system

• Standby refrigeration system and standby humidity system

Available Models & Specifications

PSI offers multiple models to suit different capacity needs:

PSI-PSC220L – Inner Dimensions: 600 x 600 x 600 mm – Capacity: 220 Liters

PSI-PSC400L – Inner Dimensions: 600 x 600 x 1100 mm – Capacity: 400 Liters

Technical Specifications:

• Temperature Range: 20°C to 50°C

• Accuracy: ± 0.2°C

• Uniformity: ± 2°C

• Power Supply: 230V AC, Single Phase, 50 Hz

Why Choose Patel Scientific Instruments?

As one of the top stability chamber dealers in India, PSI combines innovation with industry expertise. Their chambers are manufactured using CNC-based precision processes and come with complete documentation, including IQ, OQ, and PQ validation.

If you’re looking for a dependable Photo Stability Chambers Manufacturer in Ahmedabad or a reliable Photo Stability Chamber Supplier in Gujarat, PSI offers the perfect blend of quality, compliance, and performance.
