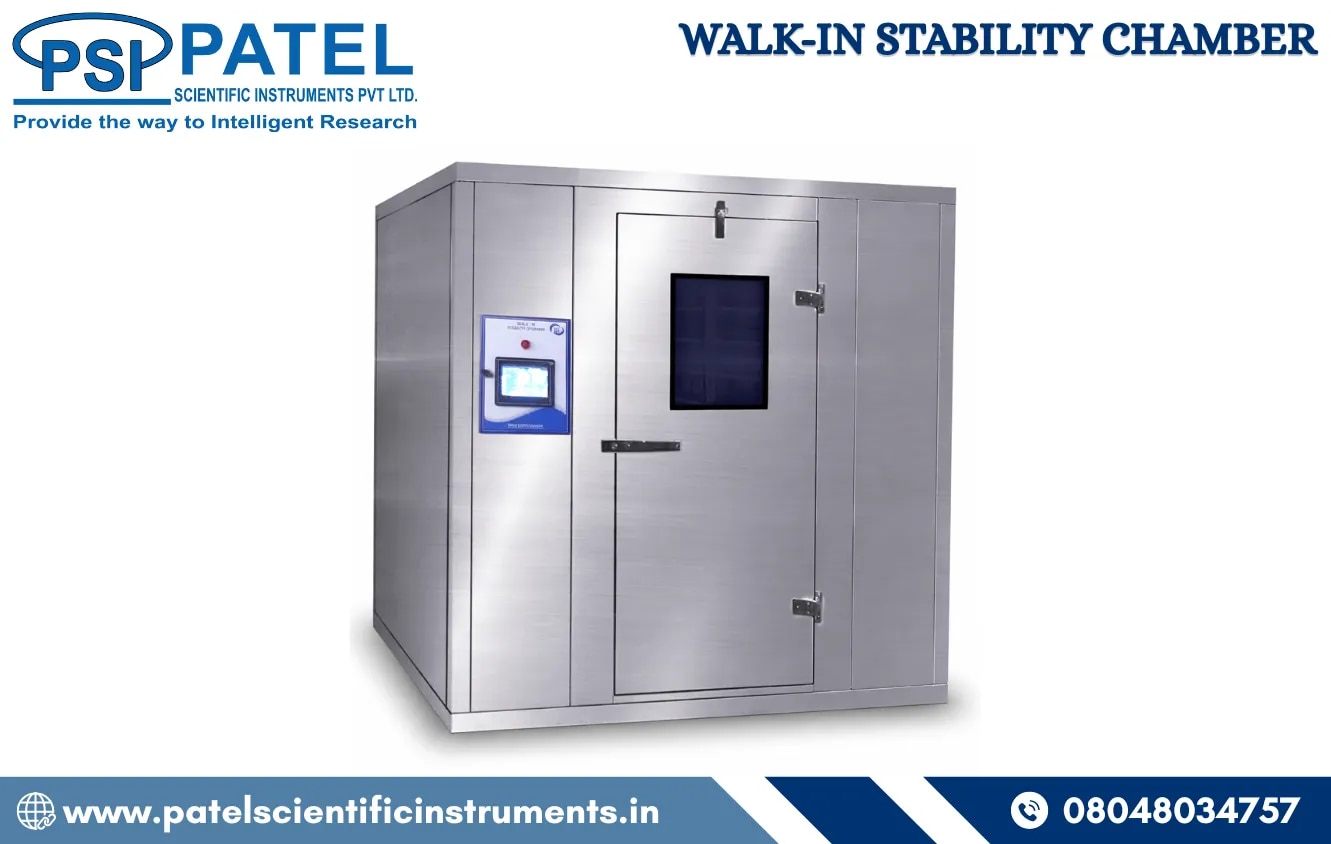

WALK-IN STABILITY CHAMBER

Walk-In Stability Chamber Supplier in Gujarat

A Walk-In Stability Chamber is a high-precision environmental testing system designed for large-scale stability studies in pharmaceuticals, research labs, and industrial applications. Patel Scientific Instruments Pvt. Ltd., a trusted Walk-In Stability Chamber Manufacturer in Ahmedabad, delivers advanced chambers built for accuracy, safety, and long-term performance.

Specifications

A Walk-in Stability Chamber is a highly advanced, precision-engineered testing solution primarily used in the pharmaceutical and research industries. Since scientists physically enter the chamber to conduct stability studies, it is manufactured to the highest safety standards and with strict accuracy controls to ensure reliable test results. These chambers are ideal for long-term stability testing, accelerated stability testing, and low-humidity testing in accordance with ICH guidelines.

Key Specifications

• Temperature Range: 20°C to 60°C

• Humidity Range: 40% RH to 95% RH

• Accuracy: ±0.2°C & ±2.0% RH

• Uniformity: ±2.0°C & ±3.0% RH

ICH Stability Test Conditions Supported

• 25°C & 60% RH

• 30°C & 65% RH

• 40°C & 75% RH

• 30°C & 75% RH

Low Humidity Conditions (Special Design)

• 25°C & 40% RH

• 40°C & 25% RH

• 30°C & 35% RH

Heating & Cooling System

• U-shaped stainless steel tubular heaters for efficient heating

• Forced air circulation system for uniform temperature and humidity distribution

• CFC-free cooling system with hermetically sealed Compressor, evaporator coil, and condenser

• Split-type condenser unit placed in a well-ventilated area to avoid hot air discharge inside the room

Automation & Data Logging

• Complete operation controlled through an advanced PLC system

• Data logging capacity up to 1000 readings for reliable record keeping

• High-speed Ethernet-based communication for smooth monitoring and connectivity

• Imported high-quality Temperature/RH combo sensor with 4-20 mA output

Safety & User Convenience

• Audio and visual alarms for temperature/humidity deviation alerts

• Adequate illumination inside the chamber for safe movement and easy operation

• Designed for safe entry and comfortable working during long stability studies

Alarm & Safety

•Temperature deviation & RH deviation Alarm,

•Power Failure Alarm,

• Continuous open door alarm,

•Very High Temperature Safety cut off,

•Low water level cut off,

•Automatic switching system for seamless operation of humidity generation and cooling units.

Features

•Stainless-steel modular construction.

•PUF insulation.

•Multi-pane vacuum-sealed observation glass windows.

•S.S wire mesh Adjustable Trays.

Ethernet Communication:

•High-speed data transfer

•Significantly faster than serial(RS-485) communication

•Global standard for communication protocol

•No need for a separate PC interface

Additional Features

• Standby Cooling System

• Standby Cooling System with auto switchover

• Standby Humidity System

Safety Features

•Temperature deviation & RH deviation alarm.

•Power Failure Alarm.

•Advanced safety mechanism that automatically shuts down the system during extreme temperature or humidity conditions.

•Low water level cut-off.

•Temperature Overshoot/Undershoot

•Humidity Overshoot

•Low water level

•Delay Timer to safeguard the Compressor

•Circuit breaker (MCB) for automatic protection against overcurrent conditions

•In the walk-in chambers, the door can be opened from the inside

Complete Range Of Alarms

•Temperature & Humidity Deviations

•Door Opening

•Mains Failure

Models & Capacities

•PSI-WSC2550 – 2550 L | 1600×840×1900 mm | 10 Shelves

•PSI-WSC3000 – 3000 L | 1600×940×2000 mm | 10 Shelves

•PSI-WSC6000 – 6000 L | 2000×1500×2000 mm | 20 Shelves

•PSI-WSC8000 – 8000 L | 2000×2000×2000 mm | 24 Shelves

•PSI-WSC10000 – 10000 L | 2000×2500×2000 mm | 30 Shelves

•PSI-WSC12000 – 12000 L | 2000×3000×2000 mm | 30 Shelves

•PSI-WSC16000 – 16000 L | 2000×4000×2000 mm | 40 Shelves

As a dependable Walk-In Stability Chamber Distributor in India, Patel Scientific Instruments offers scalable solutions for large-volume testing.

Why Choose Patel Scientific Instruments Pvt. Ltd.?

With precision engineering, advanced automation, and robust safety systems, the company has established itself as a leading Walk-In Stability Chamber Manufacturer in Ahmedabad and a trusted Walk-In Stability Chamber Supplier in Gujarat. Their chambers are designed for accuracy, compliance, and long-term reliability.

Upgrade your testing capabilities—contact Patel Scientific Instruments Pvt. Ltd. for advanced Walk-In Stability Chamber solutions today!
