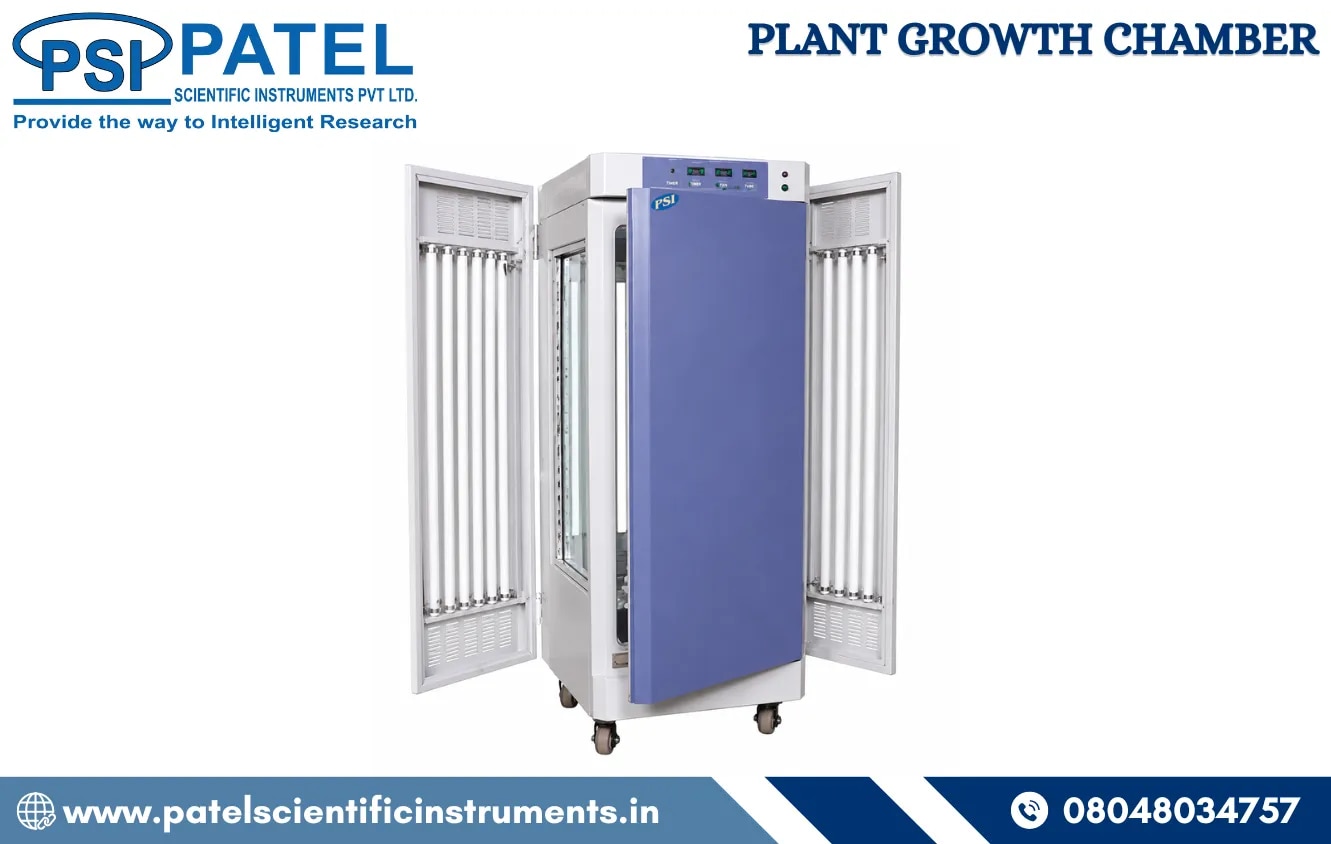

PLANT GROWTH CHAMBER

Plant Growth Chamber Manufacturer in Ahmedabad

Seed Germinators are widely used for seed testing, biological studies, and forestry research applications. They are designed with a solid, see-through double-walled door and a full-view inner plexiglass door, allowing easy inspection and monitoring of specimens without disturbing the internal process temperature. A high-quality magnetic gum packing door gasket ensures proper sealing, while the user-friendly shelf design allows easy adjustment of shelf spacing as required.

As a trusted Plant Growth Chamber Supplier in India, we provide advanced germinators equipped with forced-air circulation via a triple-walled back system with a durable coaxial blower, ensuring excellent temperature uniformity and homogeneity throughout the chamber.

Key highlights include:

High-grade PUF insulation for minimal thermal loss

Caster wheels for easy mobility

Double-walled door with lock & key for safety

Internal illumination (FLT tube) for clear visibility

Finned tube evaporator for faster cooling

Safety thermostat to prevent overheating

Technical Specifications

Type: Forced Convection Type

Compressor: Eco-friendly CFC-free hermetically sealed system

Temperature Range: 10°C to 60°C

Temperature Accuracy: ±0.5°C or better

Humidity Range: 40% to 95% RH

Humidity Accuracy: ±3% RH

Humidity Creation: Steam injection system

Outer Body: Powder-coated CRC steel sheet

Inner Chamber: Stainless Steel (S.S. 304)

Sensors: PT-100 (Temp.) | Capacitive (Humidity)

Controller: Microprocessor-based temperature & humidity controller

Safety: Over-temperature limiter switch

Insulation: High-density PUF insulation

Additional: Programmable light control & program lock system

Available Models

505 x 830 x 415 mm — 6 cu.ft (175 Liters)

570 x 875 x 550 mm — 10 cu.ft (280 Liters)

650 x 900 x 550 mm — 12 cu.ft (560 Liters)

Why Choose Patel Scientific Instruments?

Choosing the right partner matters. As a trusted Plant Growth Chamber Distributor in India, Patel Scientific Instruments Pvt. Ltd. combines engineering excellence with practical usability. Their chambers are designed not just for performance, but for long-term reliability, minimal maintenance, and consistent results—something every lab values.

Upgrade your research accuracy with a high-performance Plant Growth Chamber—contact Patel Scientific Instruments Pvt. Ltd. today!
